DUKE CRAZY STAR 6TERS rim for Trail and All Mountain use.
DUKE RIM CRAZY STAR 6TERS*

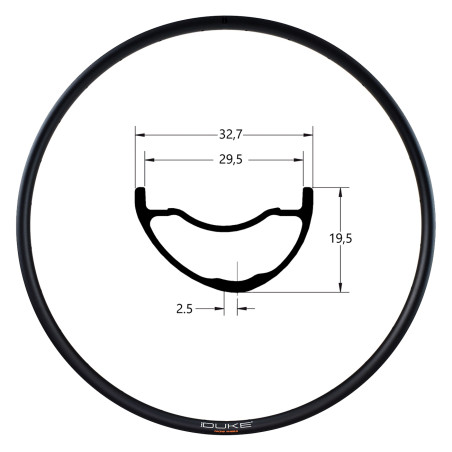

Rim made for Trail and All Mountain. On its wheels DUKE is the exclusive owner of the production tools. It offers a very good lateral rigidity and a very high internal width to improve the behavior of the tire. It is recommended on all types of terrain. The DUKE Crazy Star 6Ters rim is wider at the front of 3mm and 1.5mm higher. It have an asymmetrical profil (2.5mm offset) Which makes it possible to increase the lateral stiffness of the wheel without gaining weight. The holes in the rim are off-centered, this makes it possible to close more the umbrella formed by the Spokes. Thus the spokes ensure a better maintenance of the rim and the lateral stiffness of the wheel is increased. The risk of sailing is also decreased. Moreover, this device makes it possible to further balance the tensions of the rays between the two layers and thus guarantees a better durability of the wheel The internal size between the large brackets is 29.5 mm.
This gives more volume to the tires and thus improves the efficiency, the comfort and the grip in the corners. A wide rim also means that you can use the finer and lighter tires while maintaining the comfort, softness and grip provided by a larger volume of air. Larger tires would offer even more volume of air as they are heavy and not very dynamic. The best combination tire / rim is achieved when a tire is finished mounted on a wide rim. The tire becomes larger. This combination also reduces the rolling phenomena of the tire under the rim in the changes of bearings. With a narrow rim and a wide tire, the rim floats from one side to the other of the rim without holding. Using a wide rim and a thin tire, to minimize the floating phenomenon and on the behavior and control of the bike.
In 2019, MTB rims profiles are differentiated as we do not ask the rims the same qualities while riding :
A front wheel must give grip, be light, stiff and handy.
A rear wheel must be more comfortable, tronger and offer more efficiency.
Thus the front and rear wheels have different profiles and lay-ups.
In collaboration with Julien Absalon, the 6TERS front and rear profiles complement each other for a greater efficiency in the trails.
Many of you are aware of different needs because you are already using different section tires at front and rear wheel.
The Duke 6TERS* concept offers a wider front rim than the rear rim for more grip and stiffness. Its weight is optimized for robustness.
The rear profile is reworked with a reduced section to improve increase the impact resistance, the constraints being much more important on the back wheel. (*6TERS = sisters = sœurs)
Technology
6TERS is a concept of MTB rims differentiated between front and rear: a front wheel must maximize grip (inner width +), handling (rotational weight -) and control (lateral stiffness -). A rear wheel must provide traction, comfort (vertical stiffness-), stability (lateral stiffness +), efficiency (inside width -) and be stronger (reinforcements). Developed in collaboration with Julien Absalon (five-time world champion).
Our Tubeless compatible rims (UST, Tubeless Ready and Notubes), only require some Duke rim tape and a Tubeless-ready valve. They can also be used in a classic clincher set up (tyre & inner tube).
Dynamal is 50% stronger than 6061-T6. Unlike standard alloy blends, Dynamal is a pure alloy, enriched with magnesium-silicon and combined with a confidential metal to harden it. Compared with traditional alloys, Dynamal offers a significant increase in stress and impact resistance, without any reduction in fatigue strength.
The orientation of the holes of a rim allows a perfect alignment of the nipples and spokes, which brings a better lifetime of the spokes, the rim and the wheel.
