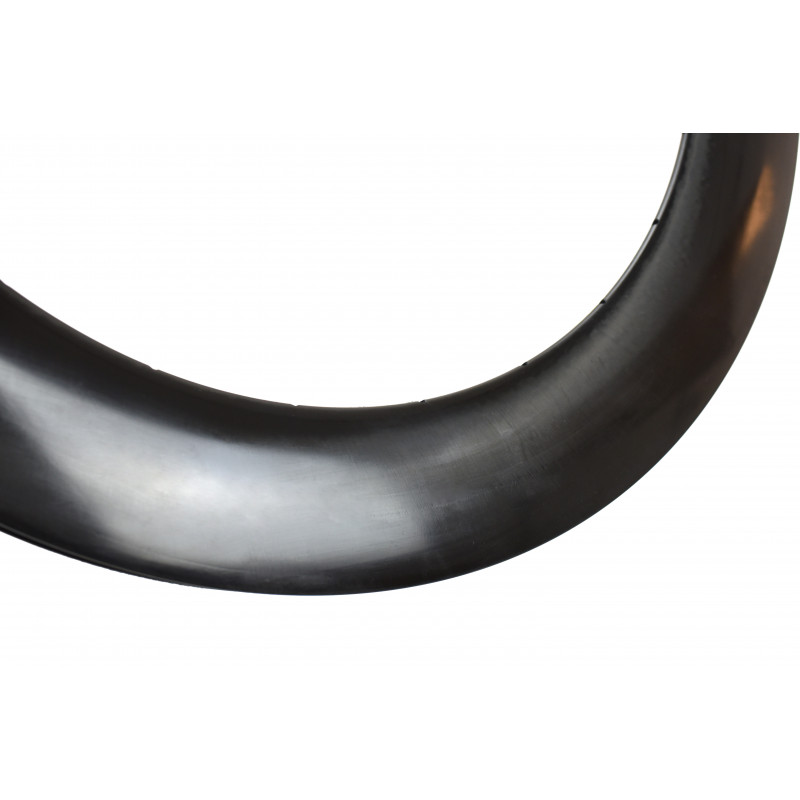

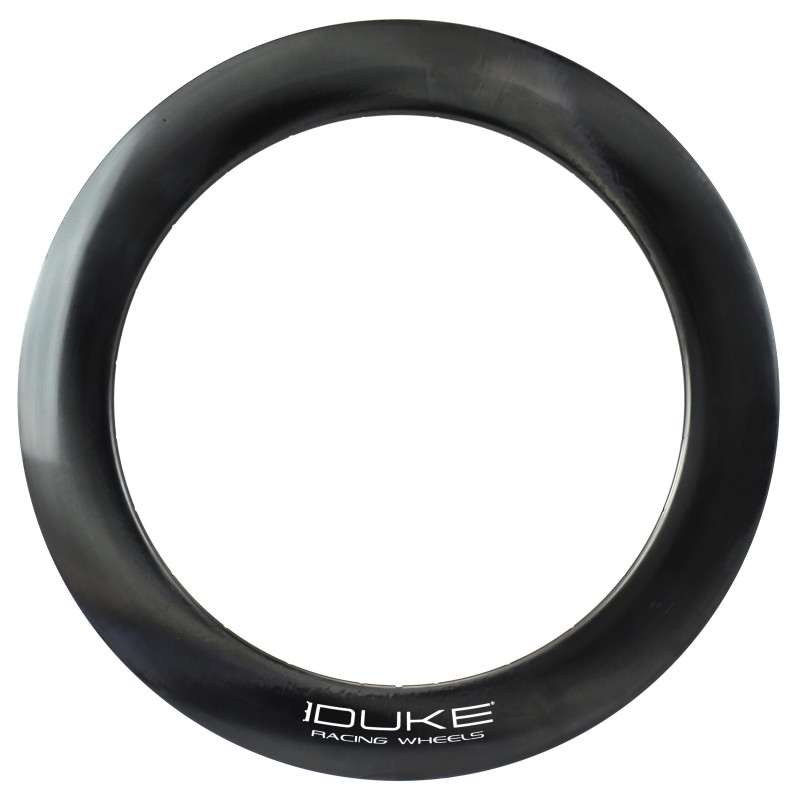

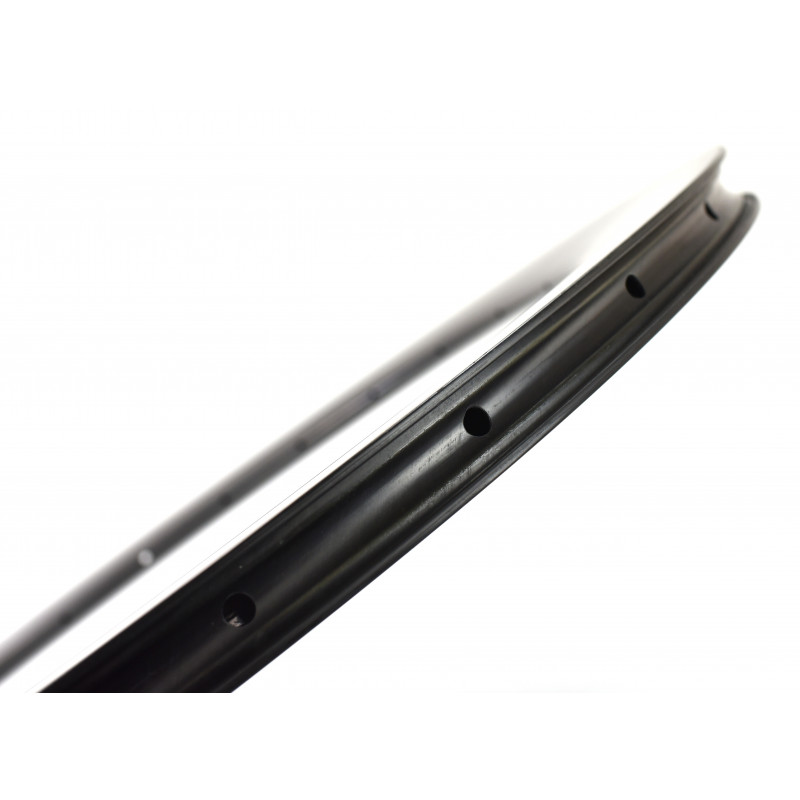

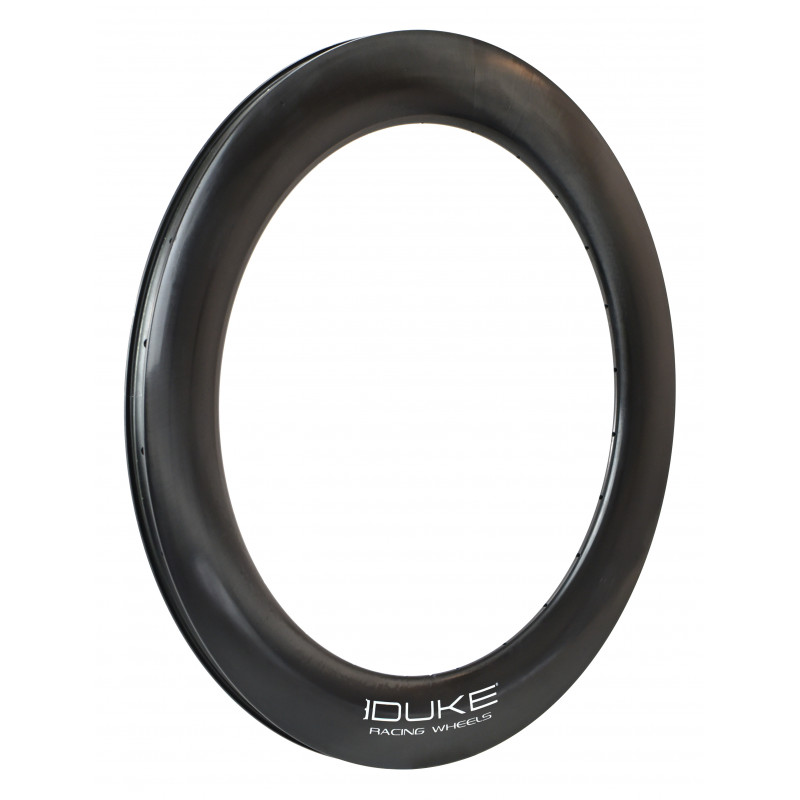

DUKE RIM BACCARA 78
The Baccara 78 are carbon rims suitable for road & competition use, Versatile on all types of roads, its internal width is 21mm for a height of 78mm.
Carbon disc riml with tires and Tubeless. High-end carbon road rim. As comfortable on the flat as on the hilly roads thanks to its contained weight. Its large width makes it very aerodynamic and stable. Use on roads.
Available for rim brakes or disc brakes.
SLR2 technology, weight reduced by 10%. This process also allows a better filtration of vibrations. The rim profile has been redesigned to improve its aerodynamics and stability in all wind conditions.

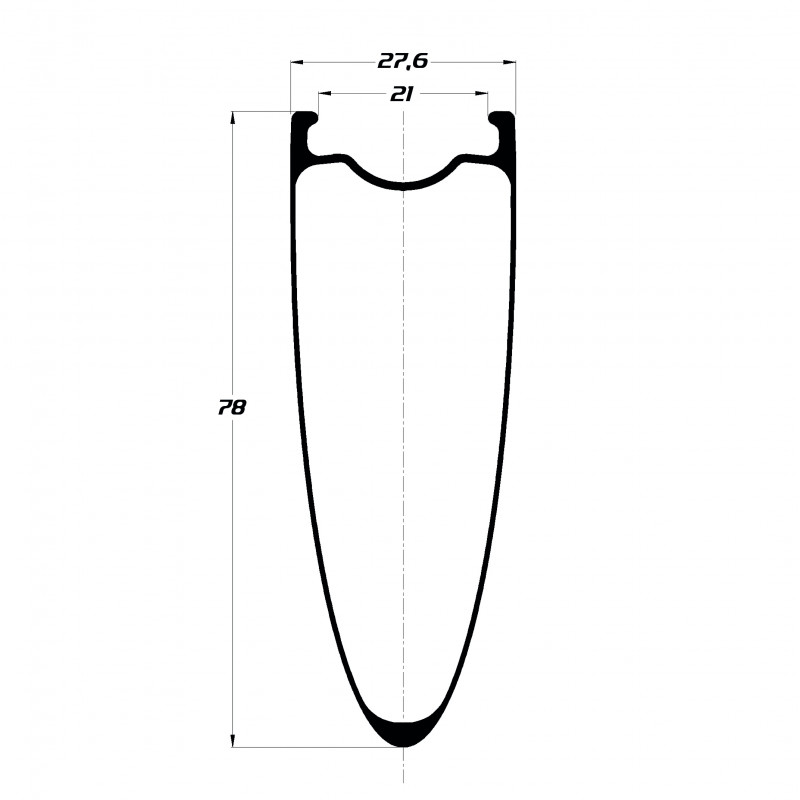

The outer width is increased to 27.6mm, has a new UV shape and reduces aerodynamic drag.
The wider 21mm hook width gives more volume to the tires and improves comfort and grip without losing performance.
Recommended tire widths are 25mm and 28mm, tubeless or tubetype. DUKE owns its manufacturing tools.
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- SYMMETRICAL
- RIM HEIGHT (MM)
- 78
- SYSTEM MAX WEIGHT (KG)
- 135
135.0 - INSIDE WIDTH (MM)
- 21.0
- OUTER WIDTH (MM)
- 28.0
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- MOUNTAIN
ROAD
ROAD E-BIKE
TANDEM ROAD
TRACK
TRIATHLON&CLM - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- TYPE OF TYRE
- CLINCHER
TUBELESS
TUBELESS OU CHAMBRE À AIR - VALVE HEIGHT (MM)
- 94
- TAPE WIDTH (MM)
- 24.0
- MAX PRESSURE (BAR)
- 7.5B WITH 28MM TYRE
- ERD JANTE(S)
- 488.0
- ETRTO (MM)
- 622.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 25MM 1,00" / 53MM 2,10"
- STICKER TYPE
- H78D
- AERO OPTIMIZED TYRE SIZE
- 25-26MM
- RIM BRAND
- JANTE DUKE
- WARRANTY
- 3 YEARS
