DUKE RIM BACCARA 55T 3K DISC

DUKE Rim Baccara 55T DISC (Tubular). High-end carbon road rim. Designed for versatile use on all types of roads.

Points Forts
  • RIGIDITY
  • AERODINAMISM
  • DURABILITY
  • RIM WIDTH
Variantes disponibles
430 g
€371.00
€296.80 Tax included

2 In stock

Expected shipping date: 05/12/2024

Quantity

favorite_border favorite

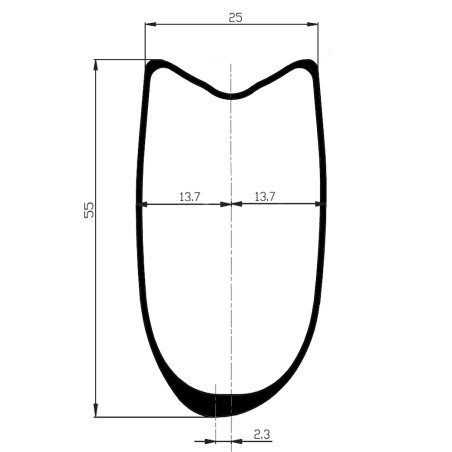

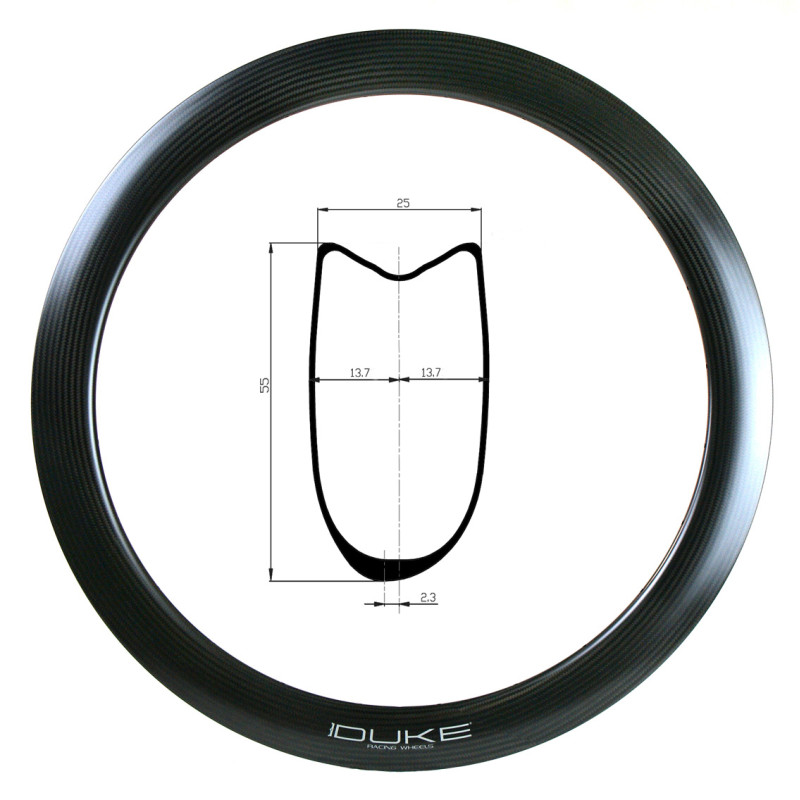

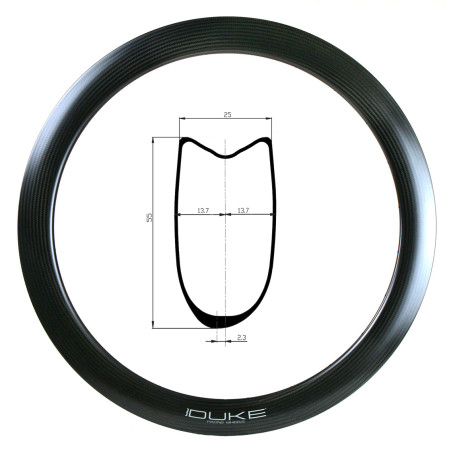

Carbon DUKE Rim 3k, twill 2x2 developed and tested in Vendée (France). The DUKE Baccara 55T carbon Disc have a asymmetric profile: With the increase in the number of speeds, The flange on the "cassette" side of the hub is increasingly "pushed" towards the inside of the wheel. The "umbrella" of the rays thus opens more and this results in the reduction of the lateral stiffness of the wheel: This one is blurred in the raises, takes of the veil easily ... To reduce this phenomenon we have designed an asymmetric rim which will give a much larger "umbrella" than the symmetrical rims (2.3 mm offset) More rigidity and more durability. Large width of 26mm: these are the modern widths. This reduces the aerodynamic drag and therefore increases its speed. The wheels are also less sensitive to lateral wind and the direction is more accurate The cyclist feels more confident. For tubular from 23 to 28mm wide (up to 33mm in cyclocross), The tubular of this size bring efficiency, comfort and grip.

Data sheet

RIM MATERIAL
CARBON
RIM PROFILE
ASYMMETRIC
RIM HEIGHT (MM)
55
OUTER WIDTH (MM)
26.0
TYPE OF BRAKING
DISC
MAX STRAIN (N)
1200.0
PRACTICE TYPE
ROAD
TRIATHLON&CLM
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
14.0
TYPE OF TYRE
TUBULAR
VALVE HEIGHT (MM)
0
MAX PRESSURE (BAR)
TUBULAR
ERD JANTE(S)
532.0
SYSTEM MAX WEIGHT (KG)
110
ETRTO (MM)
622.0
RIM OFFSET (MM)
2.3
MOUNTING WITH WASHERS
NO
POSITION
FRONT
REAR
TYRE SECTION RANGE
23MM 0,90" / 38MM 1,50"
STICKERS RANGE
DUKE B3K
STICKER TYPE
BACCARA 55D 3K
WARRANTY
2 YEARS
