DUKE RIM BACCARA 55C 3K DISC
DUKE Baccara 55C DISC (clincher). High-end carbon road rim. Designed for versatile use on all types of roads.
- DURABILITY
- AERO DYNAMICS
- RIGIDITY
- RIM WIDTH
- TUBELESS COMPATIBILITY
DUKE Baccara 55C in carbon (3k) twill 2 × 2, designed, developed and tested with us in Vendée.

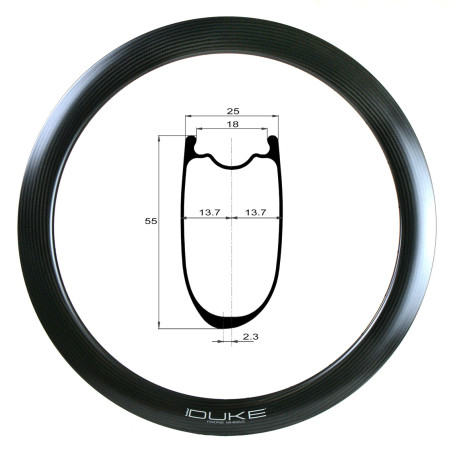

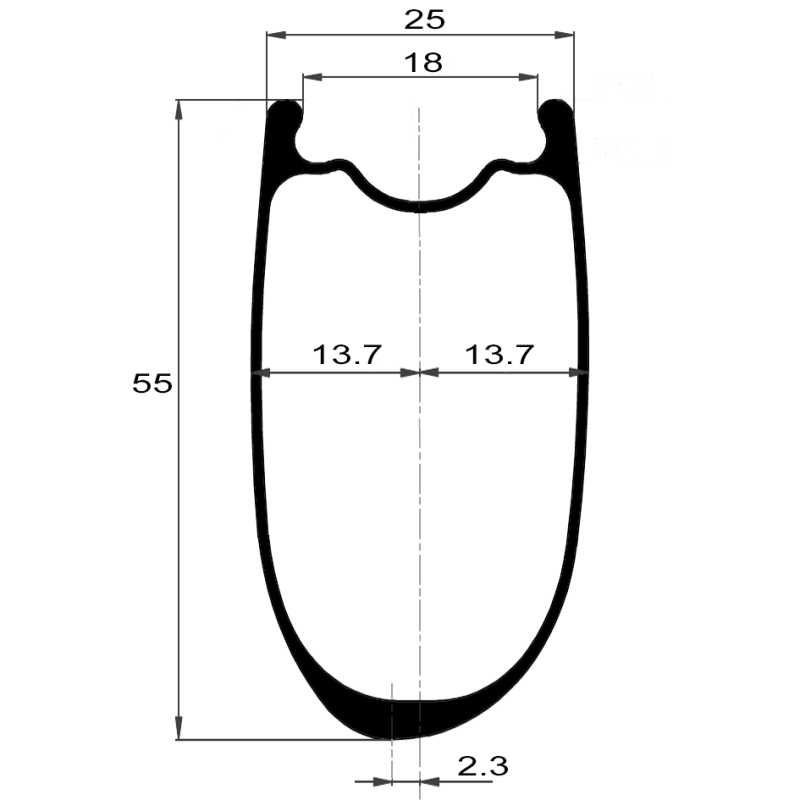

The DUKE Baccara 55C carbon (3k) twill 2x2 rim has an internal width between hooks / sides of 18mm.
This gives more volume to the tires and thus improves efficiency,
Comfort and grip in turns. A wide rim also means being able to use thinner and lighter tires while maintaining comfort,
The softness and grip provided by a larger volume of air.
Technology
-
Tubeless
Our Tubeless compatible rims (UST, Tubeless Ready and Notubes), only require some Duke rim tape and a Tubeless-ready valve. They can also be used in a classic clincher set up (tyre & inner tube).
-

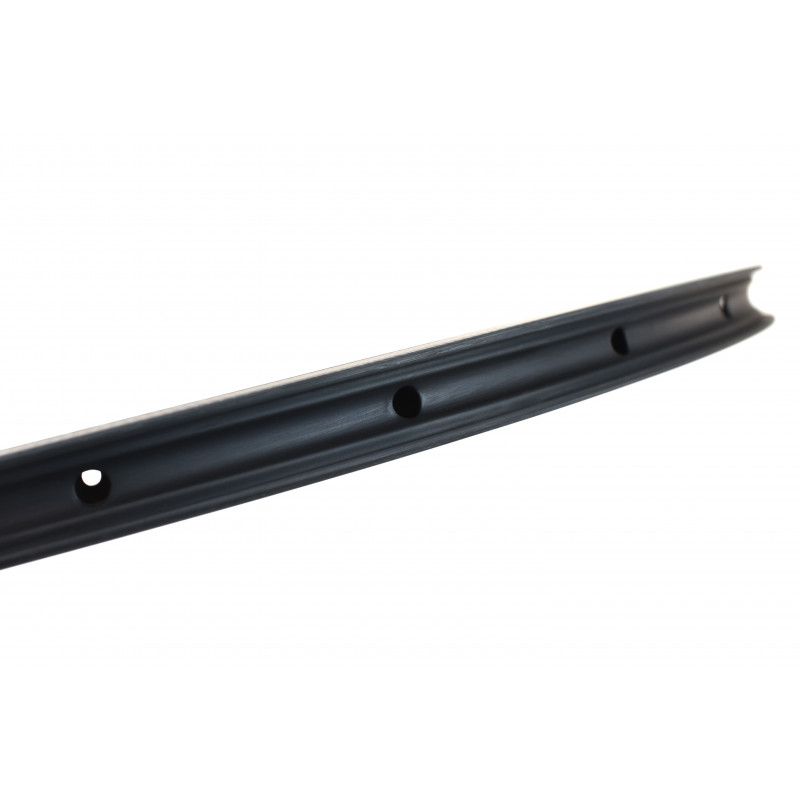

Polyaxial-drilling
The orientation of the holes of a rim allows a perfect alignment of the nipples and spokes, which brings a better lifetime of the spokes, the rim and the wheel.
Data sheet
- RIM DIAMETER
- 700C
- HOLES NUMBER
- 24
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRICAL
- INSIDE WIDTH (MM)
- 18.0
- RIM FINISH
- 3K TWILL SATIN
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- ROAD
TRIATHLON&CLM - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- TYPE OF TYRE
- CLINCHER
TUBELESS - VALVE HEIGHT (MM)
- 71
- TAPE WIDTH (MM)
- 22.0
- MAX PRESSURE (BAR)
- 8.5B WITH 25MM TYRE
- ERD JANTE(S)
- 532.0
- SYSTEM MAX WEIGHT (KG)
- 110
- RIM HEIGHT (MM)
- 55
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.3
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 23MM 0,90" / 38MM 1,50"
- STICKERS RANGE
- DUKE B3K
- STICKER TYPE
- BACCARA 55D 3K
- WARRANTY
- 2 YEARS
- OUTER WIDTH (MM)
- 26.0
