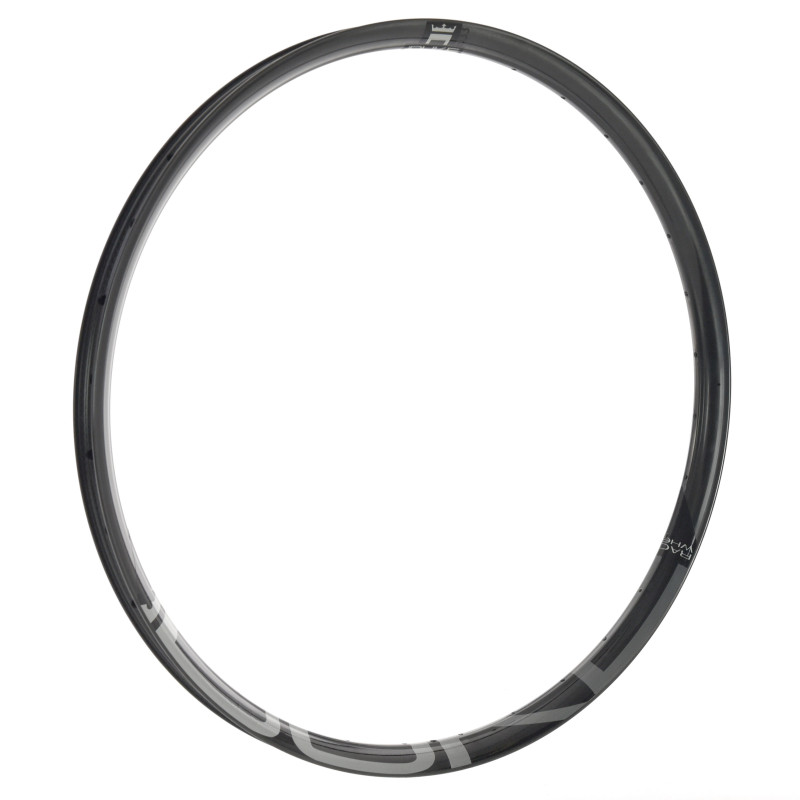

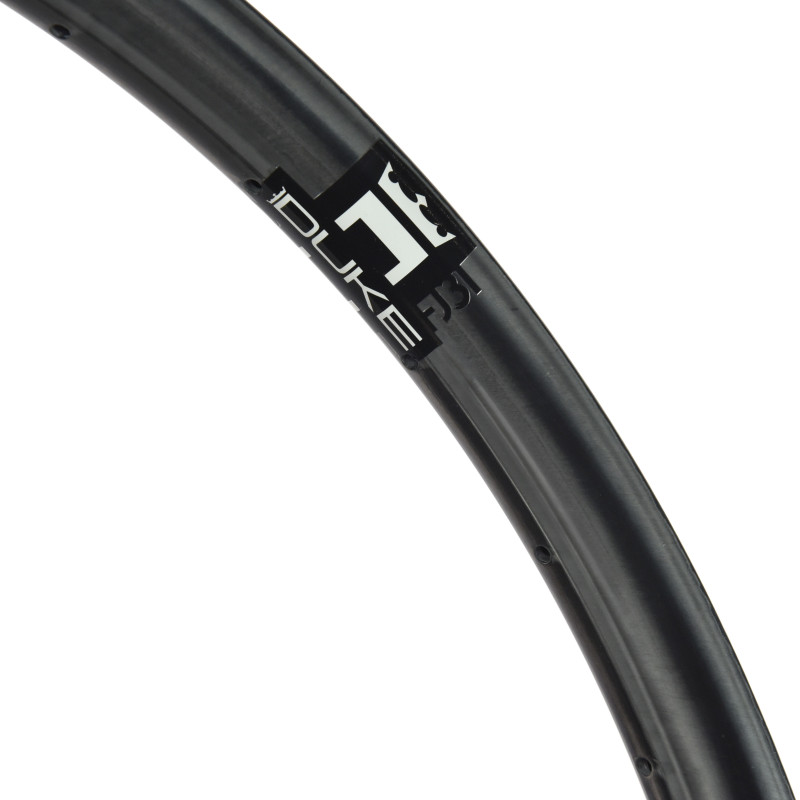

DUKE RIM FURY JACK SLS5 REAR

Data sheet

RIM DIAMETER

29"

HOLES NUMBER

32

RIM MATERIAL

CARBON

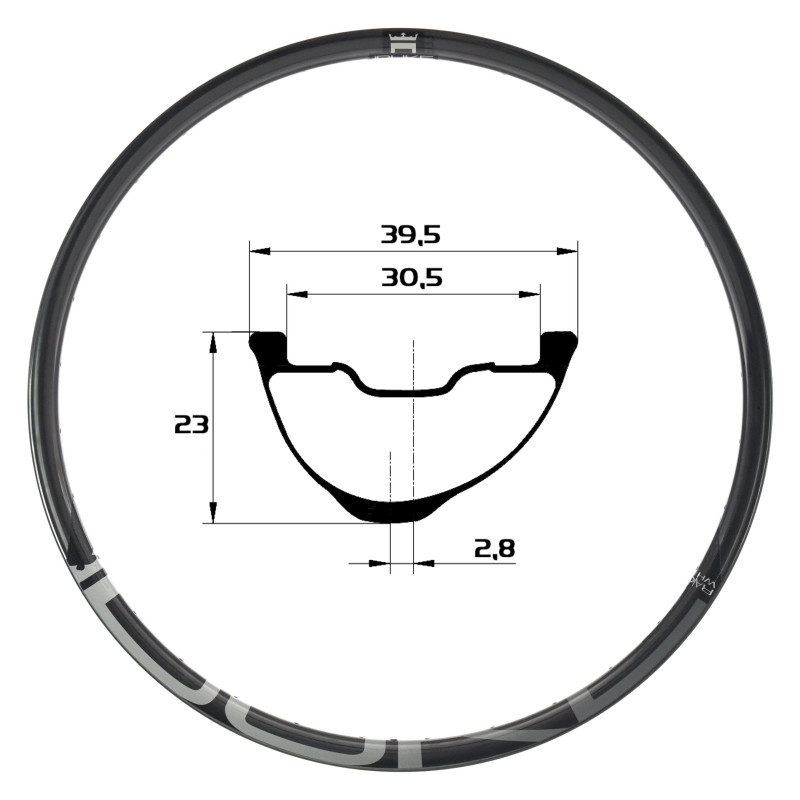

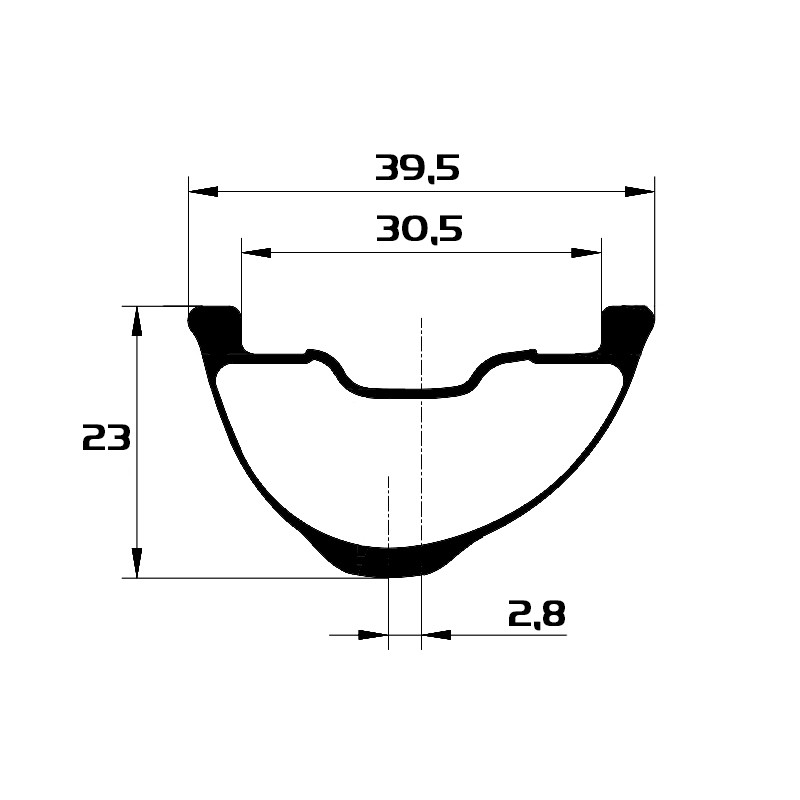

RIM PROFILE

ASYMMETRICAL

RIM HEIGHT (MM)

23

SYSTEM MAX WEIGHT (KG)

130

INSIDE WIDTH (MM)

30.5

TYPE OF BRAKING

DISC

MAX STRAIN (N)

1200.0

PRACTICE TYPE

ALL MOUNTAIN E-BIKE
AM
E-BIKE ENDURO
END
TANDEM MTB
VAE XC

NIPPLE POSITION

EXTERNAL

NIPPLE HEIGHT (MM)

14.0

TYPE OF TYRE

TUBELESS OU CHAMBRE À AIR

VALVE HEIGHT (MM)

44

TAPE WIDTH (MM)

30.0

MAX PRESSURE (BAR)

2.2B WITH 2.40" TYRE

ETRTO (MM)

622.0

RIM OFFSET (MM)

2.8

MOUNTING WITH WASHERS

NO

POSITION

FRONT
REAR

TYRE SECTION RANGE

53MM 2,10" / 71MM 2,80"

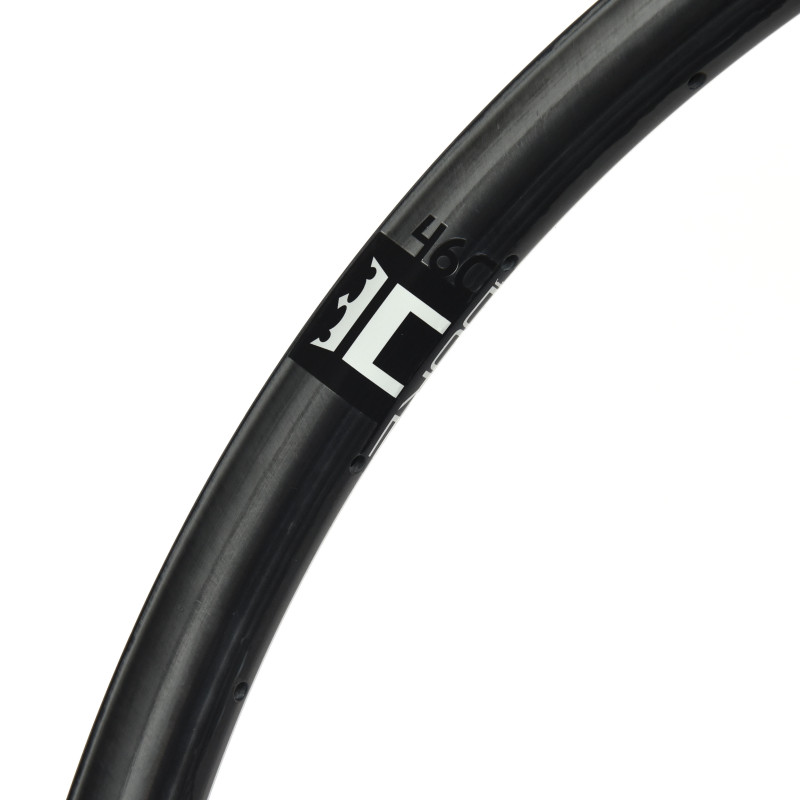

STICKER TYPE

L58

RIM BRAND

JANTE DUKE

WARRANTY

3 YEARS

FINITION JANTE

UD PAINTLESS
