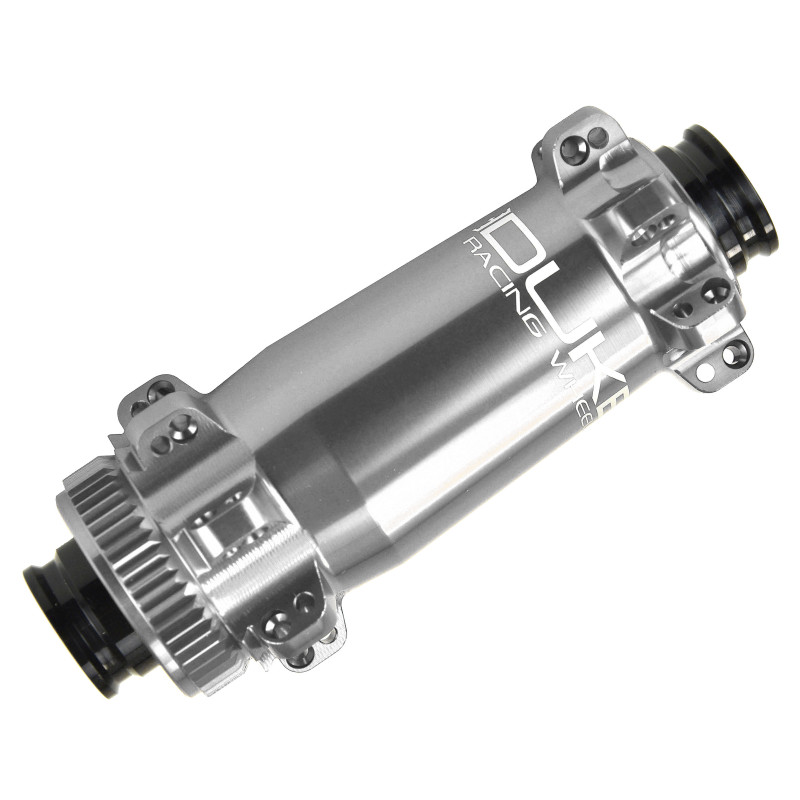

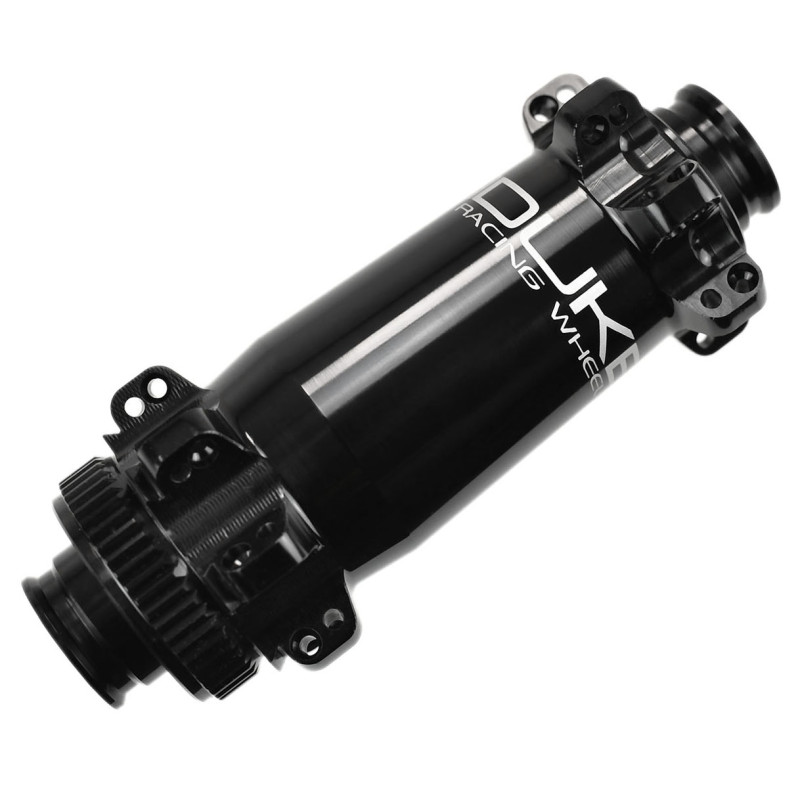

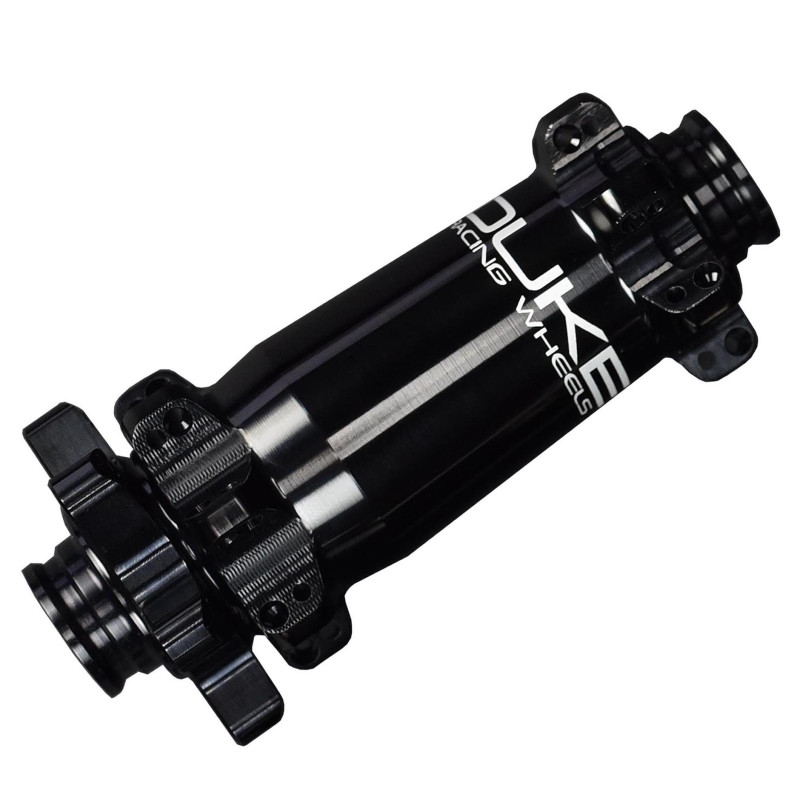

DUKE MADMAX SP FRONT HUB
DUKE MadMax SP hubs are available in IS 6 holes and Center Lock

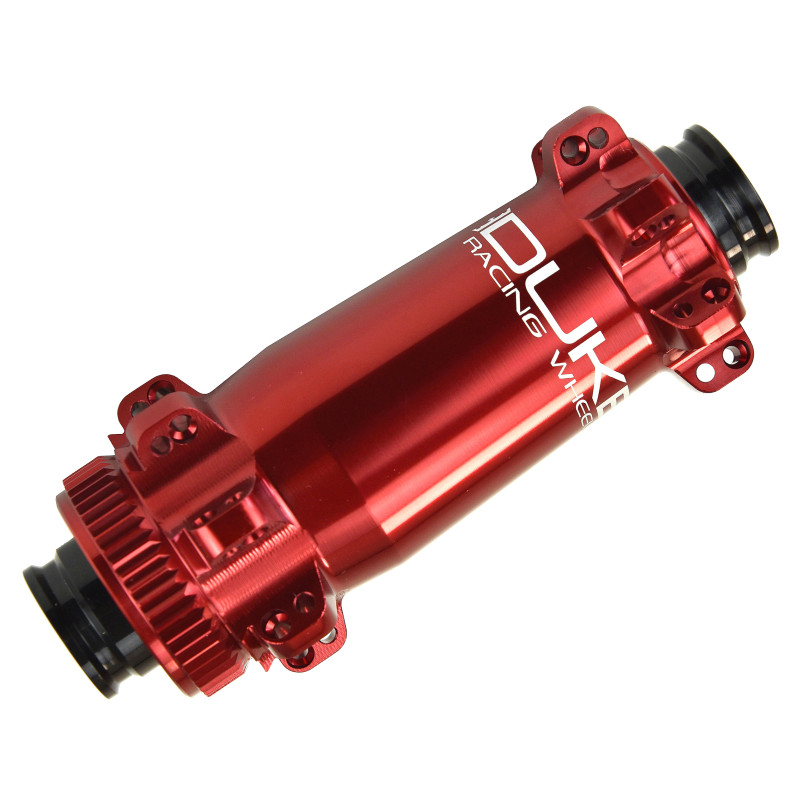

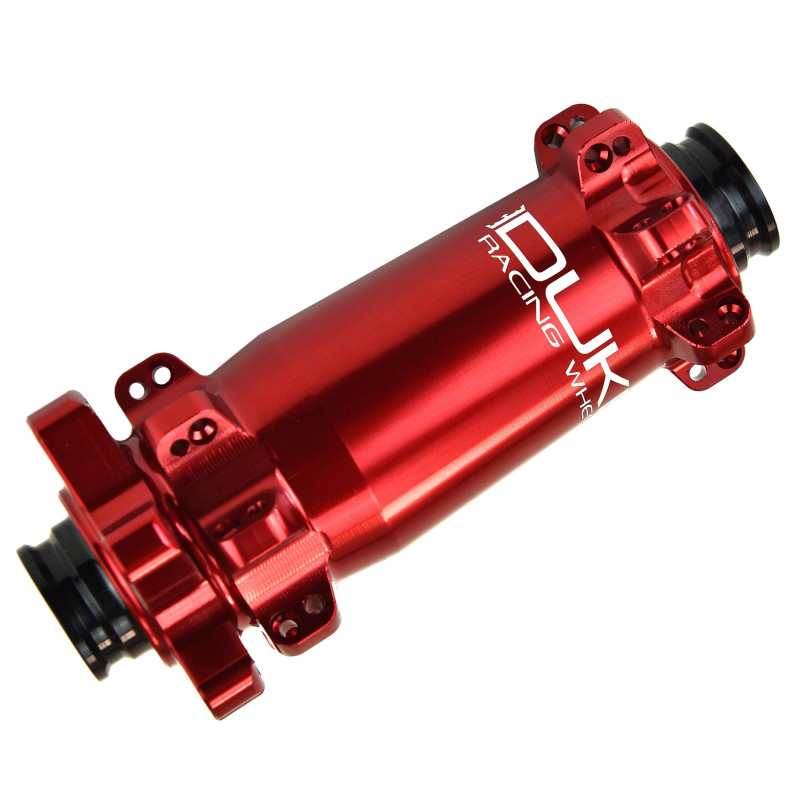

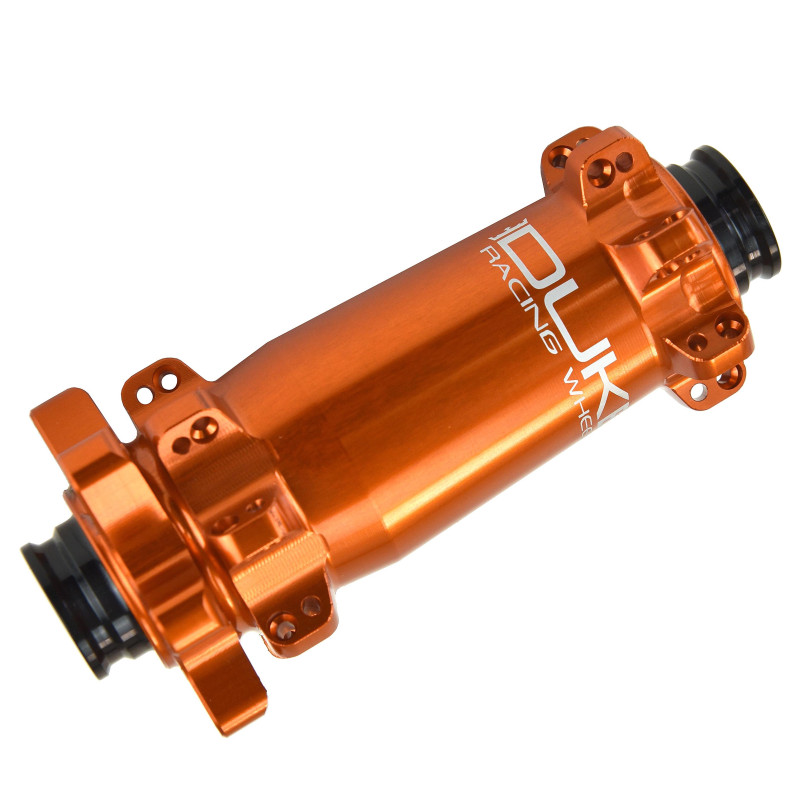

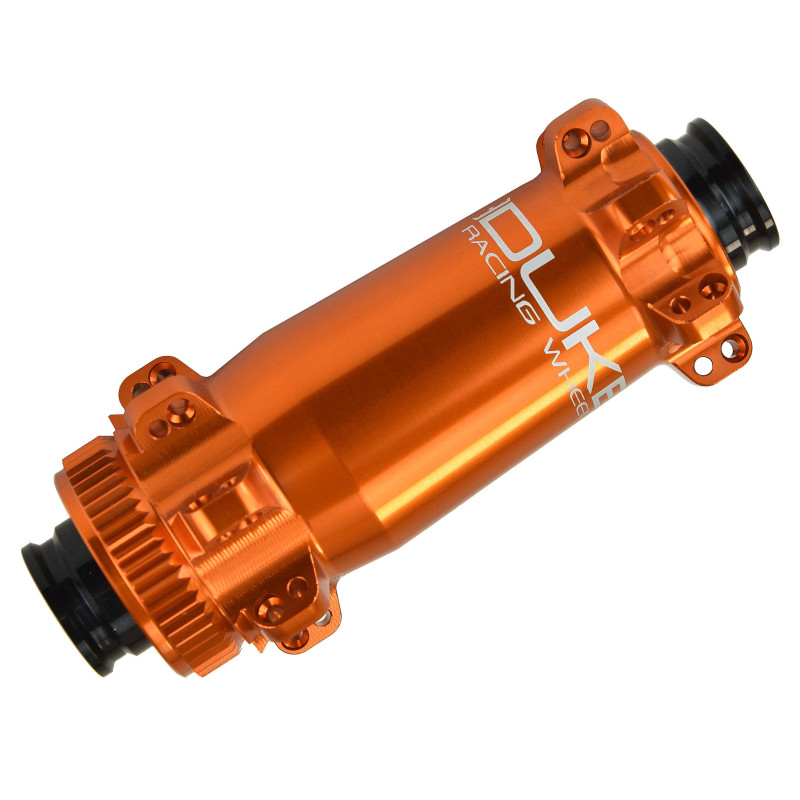

MadMax Red or Orange are only available in Boost 28 holes, the silver anodised model is available in 100x12 and 24 holes.
DUKE MAD MAX SP (straight Pull) HUBS
DUKE Mad Max hubs are 100% European design and manufacturing, synonymous with reliable and high quality products.
Titanium freewheel with 70 crans to reduce pedalling time.
We carefully select our subcontractors to produce a hub that strictly meets our specifications. Also, machining, anodizing, laser engraving, are exclusively carried out in Europe, the assembly is carried out in our premises in the Vendée.
Our experience as an artisanal wheel fitter gives us perspective on the concepts and technologies of the market. As a result, we offer you a hub that combines the best technologies available on the market while adding our exclusive Duke signature.
Stainless steel bearings. The DUKE MadMax SP hub has bearings that are offset as far outwards as possible to reduce the stress on the bearing and thus improve fluidity and durability. Its geometry is hyper-optimized: the spokes are straight pulls which avoids fatigue at the elbow level and allows to lower the weight of the pair of hubs by almost 10%.
Moreover the MadMax SP inaugurate black finishes of the most beautiful effect! The Titanium freewheel body is available in 40 teeth for road hubs and 70 teeth for MTB hubs.
Data sheet
- TYPE OF BRAKING
- DISC
- SPOKES ANCHORAGE
- STRAIGHT PULL
- MAX STRAIN (N)
- 1300.0
- PRACTICE TYPE
- BEACH RACE
CX
GRAVEL BIKE
MOUNTAIN
ROAD
TRIATHLON&CLM
XC
XC ENGAGED - BEARING MATERIAL
- CÉRAMIQUE
STAINLESS STEEL
STEEL - BEARING(S) SIZE
- 2X 6803
- POSITION
- FRONT
- SYSTEM TYPE RATCHET
- SANS
- LEFT / RIGHT FLANGE DIAMETER (MM)
- MADMAX CENTER IS BOOST - 39,6 / 37,8
MADMAX CENTER LOCK - 39,6 / 37,8
MADMAX CENTER LOCK BOOST - 39,6 / 37,8 - LEFT / RIGHT POSITION (MM)
- MADMAX CENTER LOCK - 23,1 / 34,35
MADMAX CENTER LOCK BOOST - 28,1 / 39,35
MADMAX IS BOOST - 28,1 / 39,35 - OFFSET LEFT AND RIGHT HOLES
- MADMAX CENTER LOCK - 0,85 / 0,75
MADMAX CENTER LOCK BOOST - 0,9 / 0,8
MADMAX IS BOOST - 0,9 / 0,8 - LEFT DIAMETER (MM)
- 39.6
- RIGHT DIAMETER (MM)
- 37.8
- LEFT POSITION
- 23.1
28.1 - RIGHT POSITION
- 34.35
39.35 - HOLE DIAMETER (MM)
- 2.5
- OFFSET LEFT HOLES
- 0.9
0.85 - OFFSET RIGHT HOLES
- 0.8
0.75 - STICKERS RANGE
- ORIGIN
- TYPE DE SYSTÈME ROUE LIBRE
- SANS
- HUB BRAND
- MOYEU DUKE
- WARRANTY
- 5 YEARS
