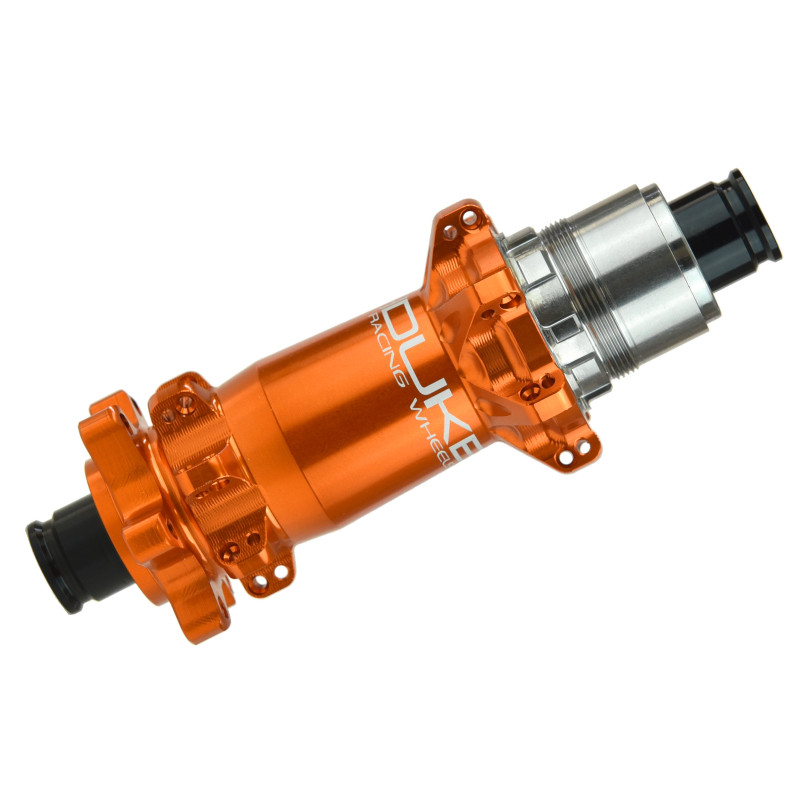

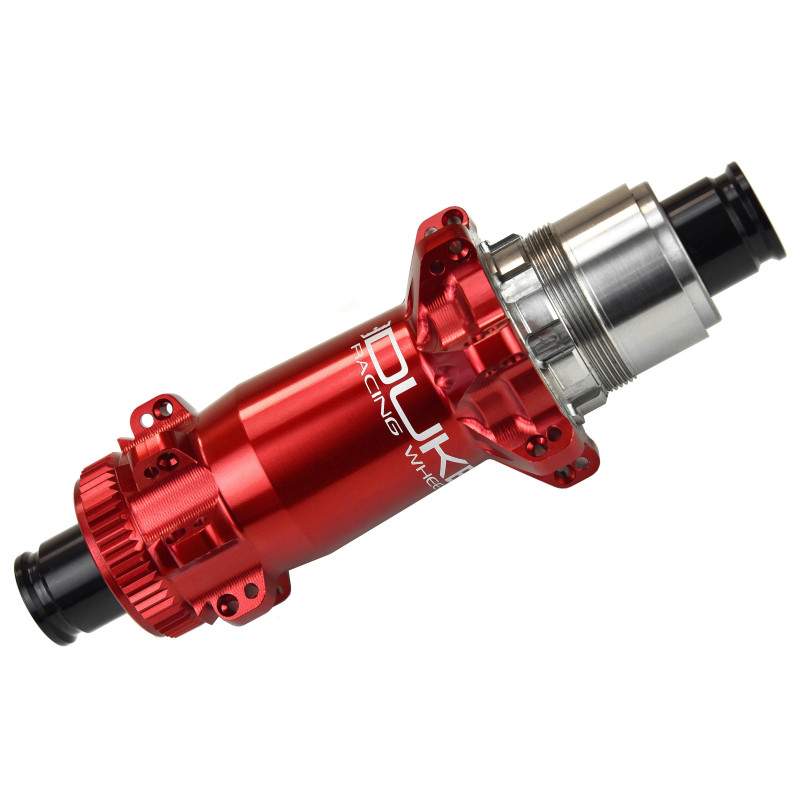

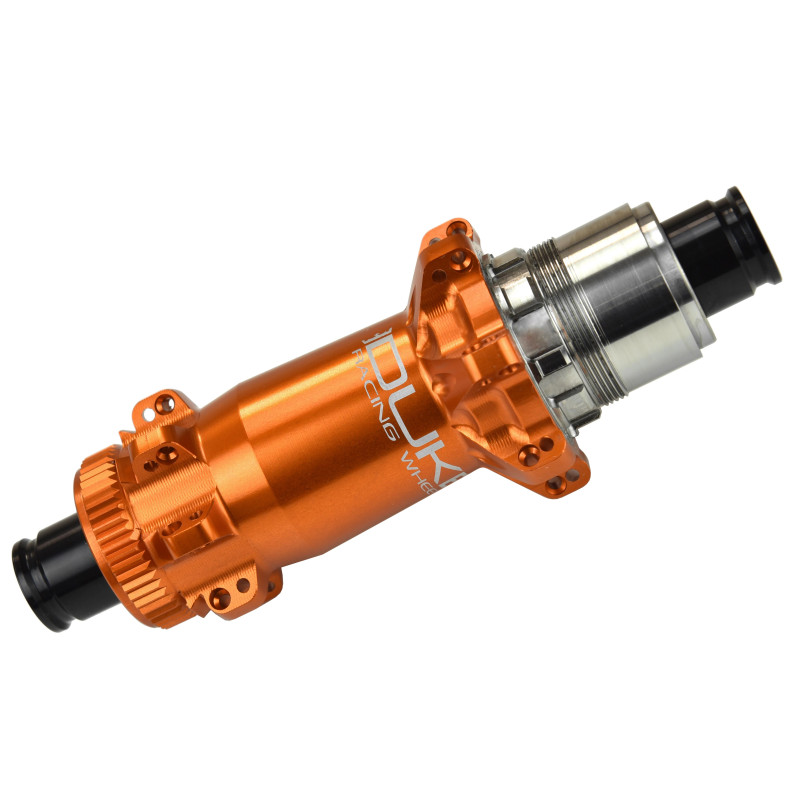

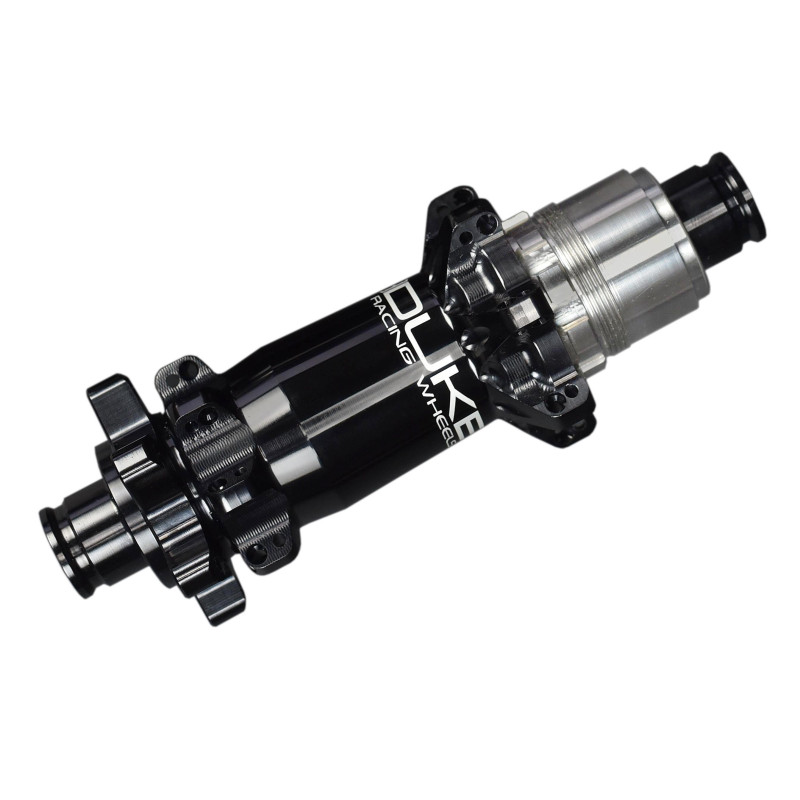

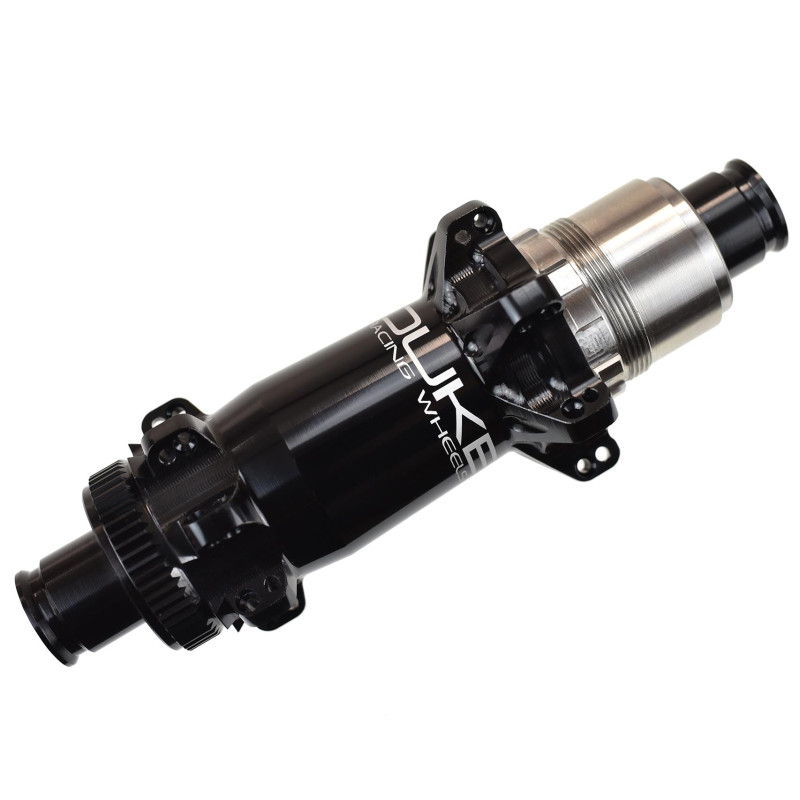

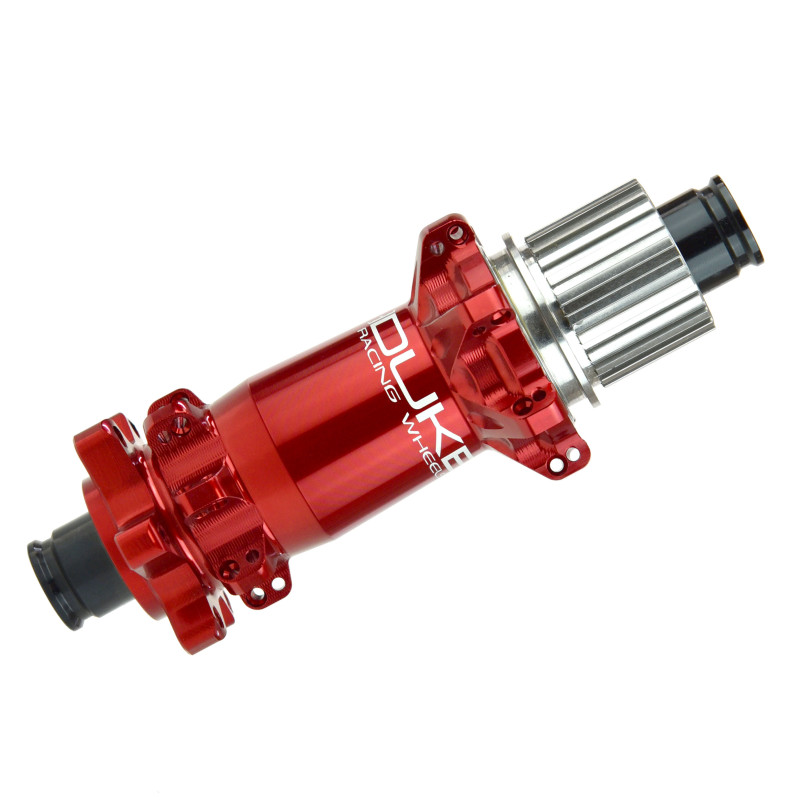

DUKE MADMAX SP REAR HUB

DUKE MadMax SP hubs are available in IS 6 holes and Center Lock

MadMax Red or Orange are only available in Boost 28 holes, the silver anodised model is available in 142x12 and 24 holes.

Variantes disponibles
201 g
€398.80
€358.92 Tax included

6 In stock

Expected shipping date: 24/12/2024

Quantity

favorite_border favorite

DUKE MAD MAX SP (straight Pull) HUBS
DUKE Mad Max hubs are 100% European design and manufacturing, synonymous with reliable and high quality products.

Titanium freewheel with 70 crans to reduce pedalling time.

We carefully select our subcontractors to produce a hub that strictly meets our specifications. Also, machining, anodizing, laser engraving, are exclusively carried out in Europe, the assembly is carried out in our premises in the Vendée.

Our experience as an artisanal wheel fitter gives us perspective on the concepts and technologies of the market. As a result, we offer you a hub that combines the best technologies available on the market while adding our exclusive Duke signature.

Stainless steel bearings. The DUKE MadMax SP hub has bearings that are offset as far outwards as possible to reduce the stress on the bearing and thus improve fluidity and durability. Its geometry is hyper-optimized: the spokes are straight pulls which avoids fatigue at the elbow level and allows to lower the weight of the pair of hubs by almost 10%.

Moreover the MadMax SP inaugurate black finishes of the most beautiful effect! The Titanium freewheel body is available in 40 teeth for road hubs and 70 teeth for MTB hubs.

Data sheet

FREEWHEEL TYPE
CAMPAGNOLO N3W
SHIMANO HG-11
SHIMANO MICROSPLINE
SHIMANO MICROSPLINE ROUTE
SRAM XD
SRAM XDR
NUMBER OF FREEWHEEL CRANS
40
70
TYPE OF BRAKING
DISC
SPOKES ANCHORAGE
STRAIGHT PULL
MAX STRAIN (N)
1300.0
PRACTICE TYPE
BEACH RACE
CX
GRAVEL BIKE
MOUNTAIN
ROAD
TRIATHLON&CLM
XC
XC ENGAGED
BEARING MATERIAL
CÉRAMIQUE
STAINLESS STEEL
STEEL
BEARING(S) SIZE
HG11 - 4X 6902
MS - 3X 6902 / 1X 6802
N3W - 3X 6902 / 1X 6802
XD - 4X 6902
XDR - 4X 6902
FREEWHEEL MATERIAL
TITANIUM
POSITION
REAR
SYSTEM TYPE RATCHET
DUKE
LEFT / RIGHT FLANGE DIAMETER (MM)
MADMAX CENTER LOCK - 39,4 / 49,2
MADMAX CENTER LOCK BOOST - 39,4 / 49,2
MADMAX IS BOOST - 39,4 / 49,2
LEFT / RIGHT POSITION (MM)
MADMAX CENTER LOCK - 34 / 18,95
MADMAX CENTER LOCK BOOST - 38 / 23,75
MADMAX IS BOOST - 38 / 23,75
OFFSET LEFT AND RIGHT HOLES
MADMAX CENTER LOCK BOOST - 0,8 / 1,2
MADMAX IS BOOST - 0,8 / 1,2
LEFT DIAMETER (MM)
39.4
RIGHT DIAMETER (MM)
49.2
LEFT POSITION
34.0
38.0
RIGHT POSITION
18.95
23.75
HOLE DIAMETER (MM)
2.5
OFFSET LEFT HOLES
0.8
OFFSET RIGHT HOLES
1.2
STICKERS RANGE
ORIGIN
TYPE DE SYSTÈME ROUE LIBRE
RATCHET DUKE ACIER
HUB BRAND
MOYEU DUKE
WARRANTY
5 YEARS
Brand DUKE RACING WHEELS
