DUKE RIM BACCARA RX 27 SLR2
The Baccara RX rims represent the latest generation of DUKE "ALL ROAD" carbon wheels, lighter and stronger for faster riding.
They are suitable for both Road and Gravel use, thanks in particular to their 25mm internal width, which guarantees good versatility.
The Baccara RX rims represent the latest generation of DUKE "ALL ROAD" carbon wheels, lighter and stronger for faster riding.
They are suitable for both Road and Gravel use, thanks in particular to their 25mm internal width, which guarantees good versatility.
They benefit from our latest SLR2 manufacturing technology, which combines comfort, lightness and strength: our "MAGIC MIX":
- EXTREME COMFORT thanks to the use of specific resins and processes to filter out some of the vibrations
- ULTRA-LIGHT rim with a new lay-up and a new combination of fibers enabling a weight reduction of 50g compared to a conventional lay-up.
- FIREPROOF STRENGTH thanks to our shock-absorbing resin The range of rim profiles (27, 36, 42, 48 and 56mm) gives you a wide choice to suit your needs.
Aerodynamics have not been forgotten, with a reworked profile to improve air penetration and stability in all wind conditions, essential for performance.
The rim retains the use of hooks to ensure safety above all else, whatever tire is used.
Its unique VFP gloss finish is scratch-resistant and more environmentally friendly.
The asymmetrical profile balances the tension between the two sides of spokes, ensuring greater durability and wheel stability.
While the 25mm width between hooks gives a tire greater volume, improving comfort and grip without sacrificing performance.
Recommended tire widths are 28mm to 2.40".
The best aerodynamics are obtained with 30mm tires.
Rims are tubeless or tubetype with inner tubes compatible.
DUKE, the choice of pro riders: 14x convinced pro and elite teams.
DUKE owns the manufacturing tools.

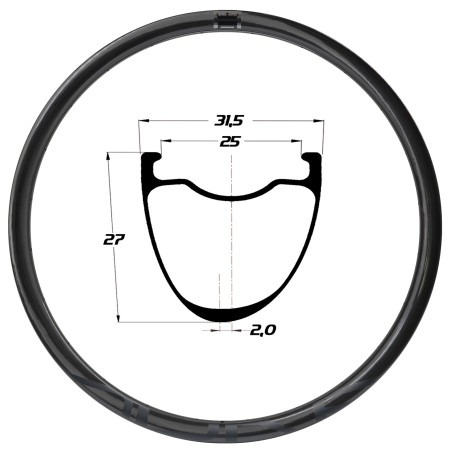

Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRICAL
- RIM HEIGHT (MM)
- 27
- INSIDE WIDTH (MM)
- 25.0
- OUTER WIDTH (MM)
- 31.5
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- BEACH RACE
CX
GRAVEL BIKE
MOUNTAIN
ROAD
ROAD E-BIKE
TANDEM ROAD
VAE GRAVEL - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- TYPE OF TYRE
- CLINCHER
TUBELESS - VALVE HEIGHT (MM)
- 44
- TAPE WIDTH (MM)
- 28.0
- MAX PRESSURE (BAR)
- 4B AVEC PNEU DE 38MM
- ERD JANTE(S)
- 588.0
- SYSTEM MAX WEIGHT (KG)
- 120
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 28MM 1,10" / 61MM 2,40"
- STICKERS RANGE
- SÉRIE3 (H)
- STICKER TYPE
- B27
- AERO OPTIMIZED TYRE SIZE
- 29-30MM
- RIM BRAND
- JANTE DUKE
- WARRANTY
- 3 YEARS
