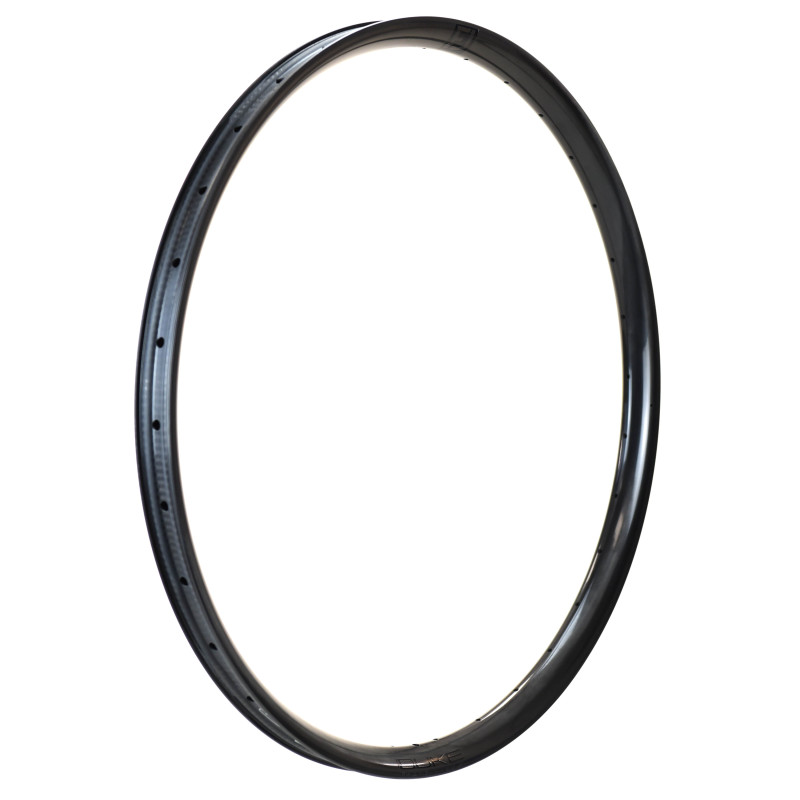

DUKE RIM FURY JACK SLS4 REAR
The Fury Jack SLS4 are carbon rims adapted to an Enduro use. The front/rear widths are differentiated : rear 30mm for only 500g
-
Technology
-
VFP (Varnish Free Process)
Since 2021, our carbon rims benefit from a unique finish: incomparable brilliance and reflections thanks to a new process called VFP without varnish. This, also and above all, makes them more environmentally friendly by drastically reducing VOC and carbon dust emissions compared with a traditional rim. Without varnish, the rim is also harder on the surface, and more resistant to scratches.
-
Hookless
This technology has been successfully used on our MTB rims since 2011. It reduces rim weight. Strength is improved. The tire is slightly bigger. Carbon rims are simpler and more economical to manufacture.
-
SLS4 (Super light series 4)
The SLS4 series for mountain bikes is 10% lighter and more resistant than the sls3 version thanks to a completely new lay-up and a new resin which not only allow the same lateral stiffness to be maintained but also and above all to considerably improve comfort, vibration filtering and rim performance. The SLS4 is always manufactured in a sealed atmosphere and does not require any retouching when it comes out of the mould. No rework or varnish, the VFP gloss finish is ecological and exceptional!
-
6Ters
6TERS is a concept of MTB rims differentiated between front and rear: a front wheel must maximize grip (inner width +), handling (rotational weight -) and control (lateral stiffness -). A rear wheel must provide traction, comfort (vertical stiffness-), stability (lateral stiffness +), efficiency (inside width -) and be stronger (reinforcements). Developed in collaboration with Julien Absalon (five-time world champion).
-
AntiBurp
Thanks to this antiburp, the tire bead is held in position at all low pressures and under all loads, so there's no risk of the bead sliding off the rim or losing pressure even when cornering hard. Two edges prevent the tire beads from sliding horizontally towards the inside of the rim. Even after a puncture, the tire stays in place on the rim
-
Anti-pinch
Rim’s sidewalls are thickened to prevent cut of tires during impacts.
-
Tubeless
Our Tubeless compatible rims (UST, Tubeless Ready and Notubes), only require some Duke rim tape and a Tubeless-ready valve. They can also be used in a classic clincher set up (tyre & inner tube).
-
Ultimate Comfort
Thanks to the latest innovations and our research into composite material, we have been able to develop a unique process that maximizes compliance and absorbs vibrations. The result is an ultra-dynamic rim that filters out the imperfections of the terrain to be appreciated whatever the distance.
-

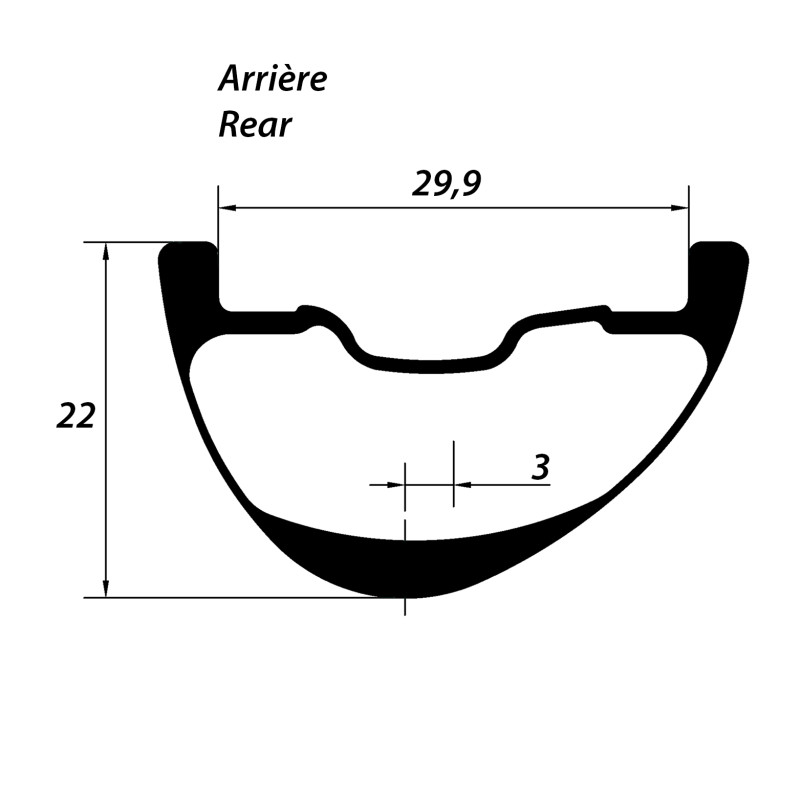

Offset
Rim offset increases lateral stiffness and wheel stability without adding weight. The rim holes are off-center, improving the spokes brace angles. By better balancing the tensions between the two spoke sides, the wheel's durability is enhanced.
-
Width
A wider rim provides greater comfort for the same tire cross-section, thanks to the greater volume of air in the tire. No need to inflate so much! The greater volume also enhances performance and grip. The bike's stability when cornering is also improved: a wider inner width reduces tire rolling under the rim under lateral loads. Using a wide rim improves comfort and control.
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRICAL
- INSIDE WIDTH (MM)
- 30.0
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- ALL MOUNTAIN E-BIKE
AM
E-BIKE ENDURO
END
TANDEM MTB
VAE XC - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- TYPE OF TYRE
- CLINCHER
TUBELESS - VALVE HEIGHT (MM)
- 44
- TAPE WIDTH (MM)
- 30.0
- MAX PRESSURE (BAR)
- 2.2B WITH 2.40" TYRE
- ERD JANTE(S)
- FJ RR : 600
- SYSTEM MAX WEIGHT (KG)
- 130
- RIM HEIGHT (MM)
- 22
23 - ETRTO (MM)
- 584.0
622.0 - RIM OFFSET (MM)
- 3.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 53MM 2,10" / 71MM 2,80"
- STICKERS RANGE
- DUKE SERIE2 L
- STICKER TYPE
- L58
- WARRANTY
- 3 YEARS
