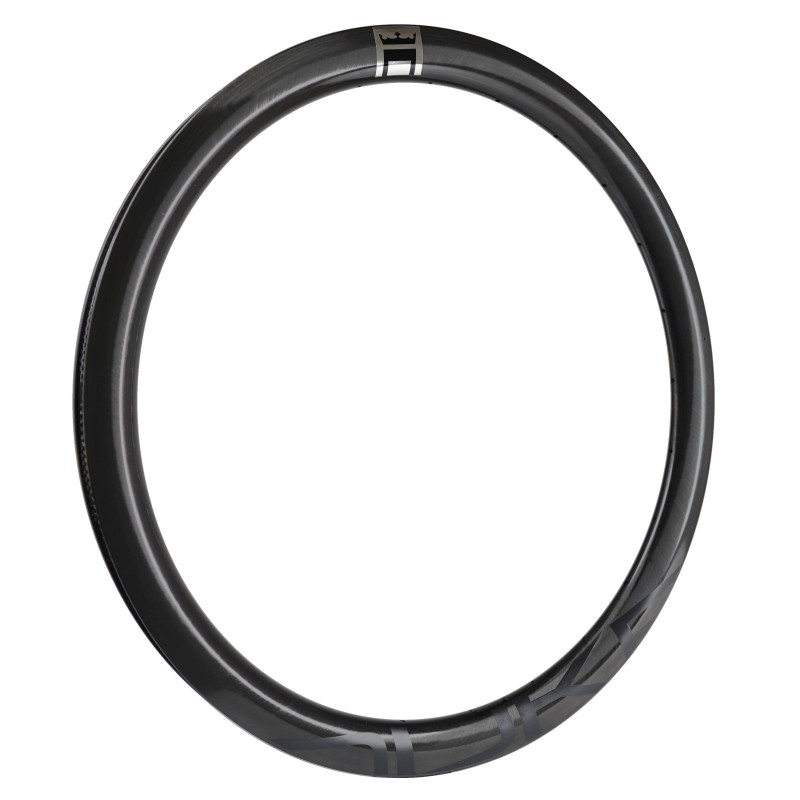

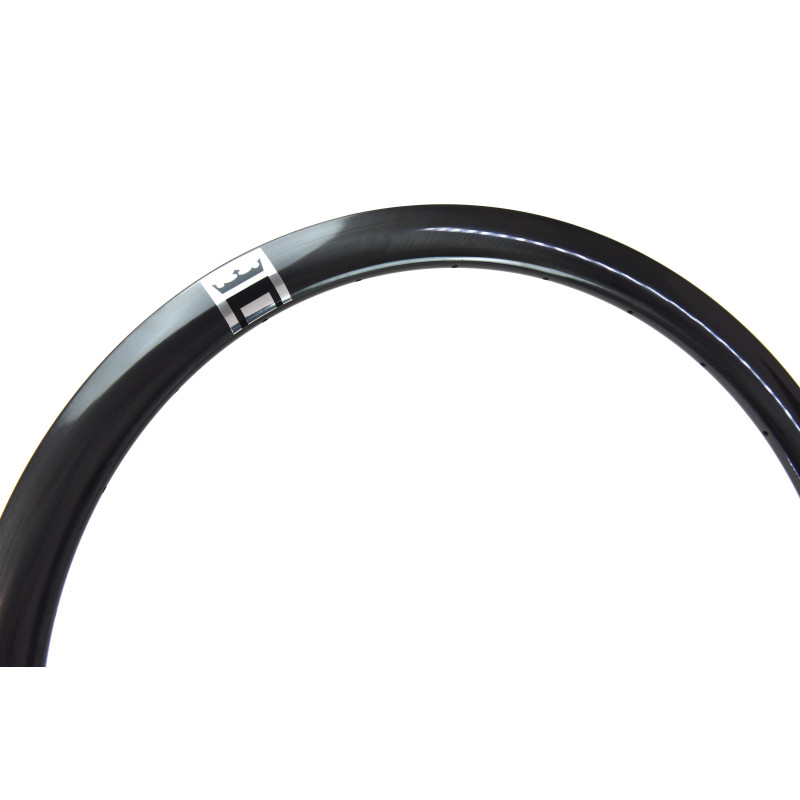

DUKE RIM BACCARA X 42 SLR2
The Baccara X 42 are carbon rims suitable for road, long distance road, Gravel Bike & competition use, Versatile on all types of roads and ways, its internal width is 23mm for a height of 42mm.
Available for disc brakes. SLR2 technology, weight reduced by 50g. This process also allows a better filtration of vibrations. The rim profile has been redesigned to improve its aerodynamics and stability in all wind conditions.

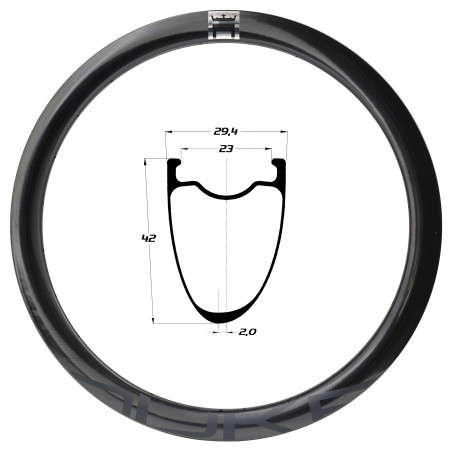

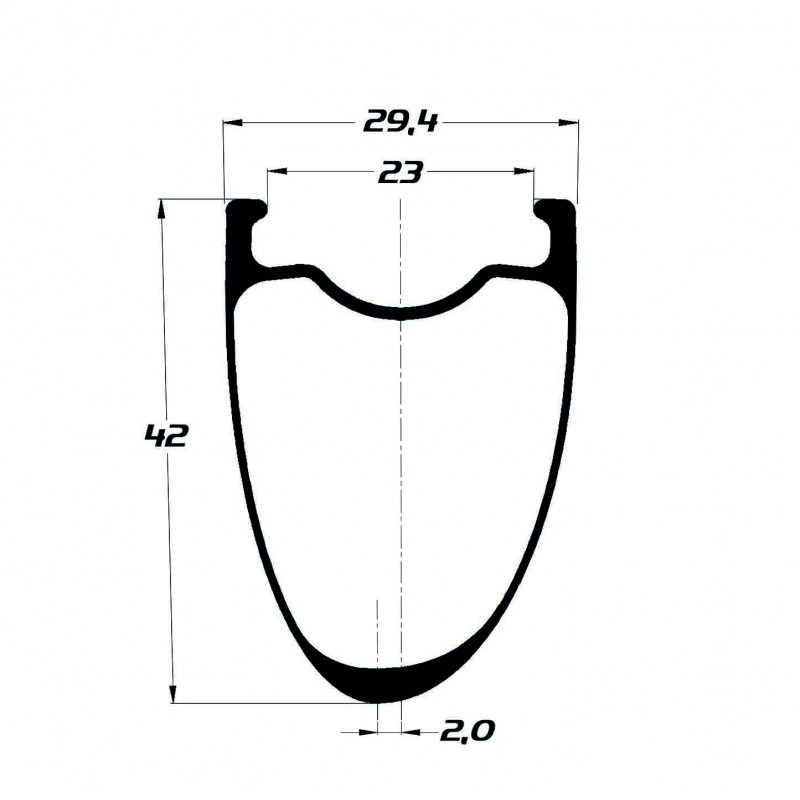

The outer width is increased to 29.4mm, has a new UV shape and reduces aerodynamic drag.

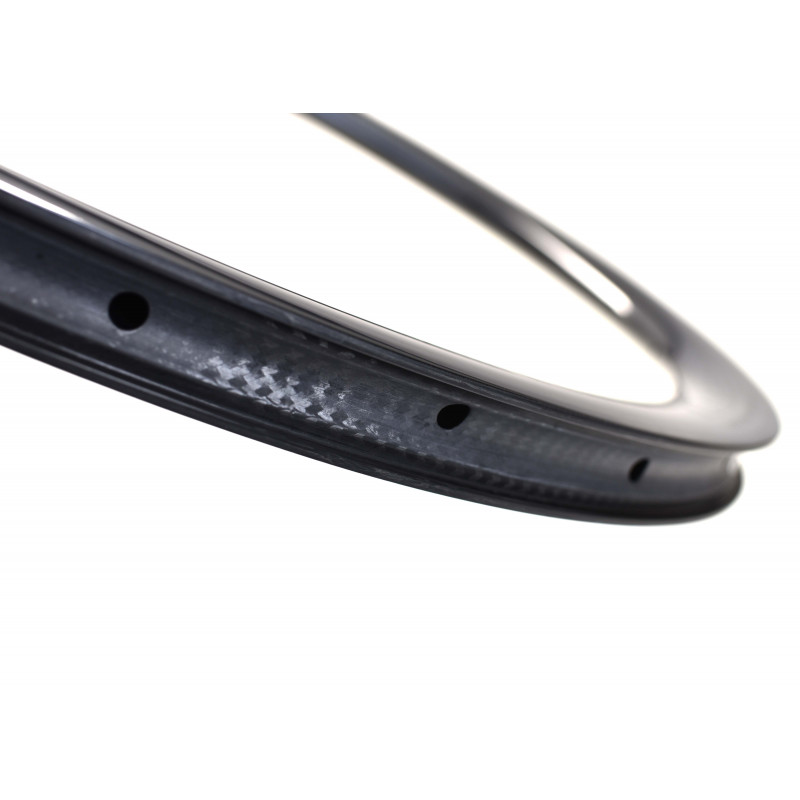

The rim holes are off-centered (2mm offset), which allows to close more the spokes umbrella. This makes the rim more stable and increases the lateral stiffness of the wheel. The spoke tensions between the two layers are more balanced, which guarantees a better durability of the wheel.
So more stiffness and more durability. The wider 23mm hook width gives more volume to the tires and improves comfort and grip without losing performance.Recommended tire widths are 28mm to 53mm, tubeless or tubetype.
DUKE owns its manufacturing tools.
Technology
-
VFP (Varnish Free Process)
Since 2021, our carbon rims benefit from a unique finish: incomparable brilliance and reflections thanks to a new process called VFP without varnish. This, also and above all, makes them more environmentally friendly by drastically reducing VOC and carbon dust emissions compared with a traditional rim. Without varnish, the rim is also harder on the surface, and more resistant to scratches.
-
SLR2 (Super light road series 2)
The SLR2 series for Road and Gravel is 15% lighter and more resistant than the sls version thanks to a completely new lay-up and a new resin which not only allow the same lateral rigidity to be maintained but also and above all to considerably improve the comfort, vibration filtering and rim performance. The SLR2 is manufactured in a sealed atmosphere and does not require any retouching when it comes out of the mould. No rework or varnish, the VFP gloss finish is ecological and exceptional!
-
Tubeless
Our Tubeless compatible rims (UST, Tubeless Ready and Notubes), only require some Duke rim tape and a Tubeless-ready valve. They can also be used in a classic clincher set up (tyre & inner tube).
-
Hooked
We keep the hooks on all our gravel and road rims. As the pressures used are higher than in mountain bikes, the risk of the tire sliding off the rim is too high with hookless rims. What's more, for a given inside width, rims with hooks have a wider outer width than rims without hooks, which enhances the aerodynamics of the rim/tire assembly.
-
Ultimate Comfort
Thanks to the latest innovations and our research into composite material, we have been able to develop a unique process that maximizes compliance and absorbs vibrations. The result is an ultra-dynamic rim that filters out the imperfections of the terrain to be appreciated whatever the distance.
-
Offset
Rim offset increases lateral stiffness and wheel stability without adding weight. The rim holes are off-center, improving the spokes brace angles. By better balancing the tensions between the two spoke sides, the wheel's durability is enhanced.
-
Width
A wider rim provides greater comfort for the same tire cross-section, thanks to the greater volume of air in the tire. No need to inflate so much! The greater volume also enhances performance and grip. The bike's stability when cornering is also improved: a wider inner width reduces tire rolling under the rim under lateral loads. Using a wide rim improves comfort and control.
-
Aero
The outer shape of the rim is designed to optimize air flow around the rim and reduce turbulence. This helps to make the wheels more stable and faster. The rims can accommodate a wide range of tire widths, the rims are aerodynamically optimized for a narrower range.
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRIC
- RIM HEIGHT (MM)
- 42
- INSIDE WIDTH (MM)
- 23.0
- OUTER WIDTH (MM)
- 29.5
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- CX
GRAVEL BIKE
MOUNTAIN
ROAD
ROAD E-BIKE
TANDEM ROAD
TRIATHLON&CLM
VAE GRAVEL - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- TYPE OF TYRE
- CLINCHER
TUBELESS - VALVE HEIGHT (MM)
- 57
- TAPE WIDTH (MM)
- 26.0
- MAX PRESSURE (BAR)
- 5,4B AVEC PNEU EN 32MM
- ERD JANTE(S)
- 558.0
- SYSTEM MAX WEIGHT (KG)
- 120
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 25MM 1,00" / 53MM 2,10"
- STICKERS RANGE
- SÉRIE3 (H)
- STICKER TYPE
- B42
- AERO OPTIMIZED TYRE SIZE
- 28MM
- RIM BRAND
- JANTE DUKE
- WARRANTY
- 3 YEARS
Crash replacement
We offer a crash replacement programme for carbon wheels. In case of accidents or heavy falls, violent shocks can damage your rim and make it impossible to use. With our Crash Replacement offer we offer you a service that allows you to replace your rim under special conditions: You get a 50 percent discount on the price of the rim (UD SLS carbon) 40 percent (3k Carbon), as well as the parts and the disassembly/reassembly. This offer is valid (for life) for an unlimited period of time for DUKE carbon rims and is transferable in the event of sale of the wheels to a third party.
