DUKE RIM CRAZY JACK UD MAT

Carbon rim for All Mountain

Variantes disponibles
415 g
€402.00
€281.40 Tax included

3 In stock

Expected shipping date: 05/12/2024

Quantity

favorite_border favorite

JANTE DUKE CRAZY JACK
Carbon rims for All Mountain and Enduro use. Its large width optimizes the behavior of the tire and thus promotes the efficiency,

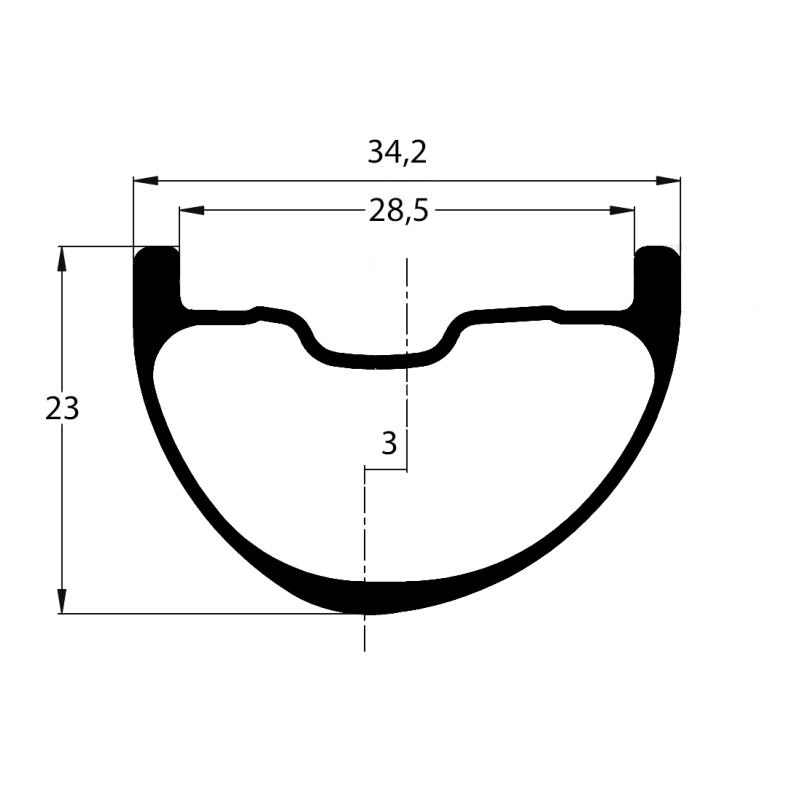

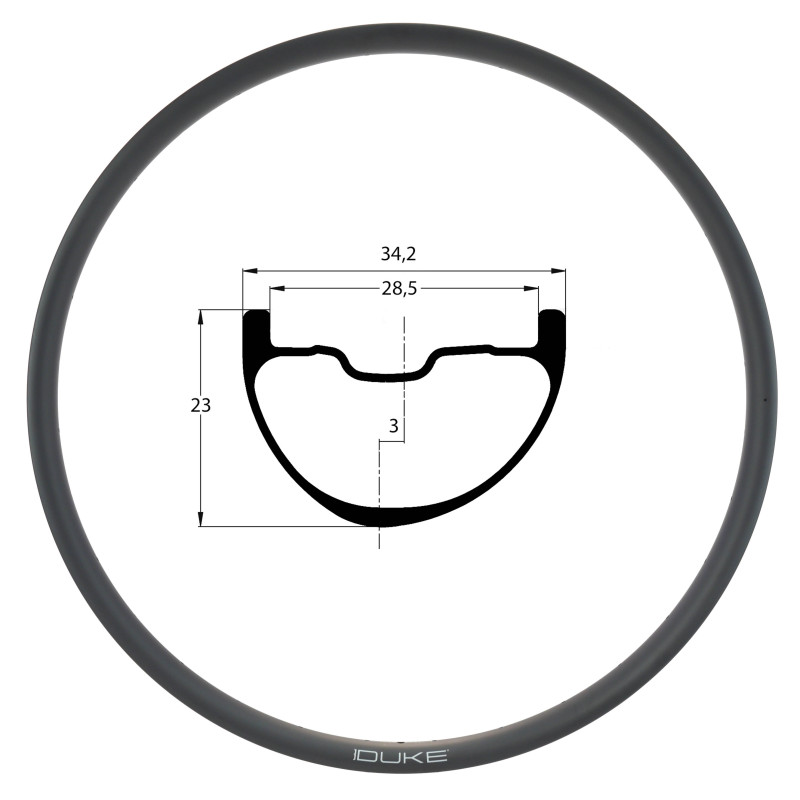

Comfort and grip thanks to a larger volume of air. It offers unrivaled lateral stiffness / weight ratio in its class and provides unusual sensations. Designed, developed and tested in France, The DUKE Crazy Jack in carbon has an ASYMMETRICAL profile (offset of 3 mm) which allows to increase the lateral stiffness of the wheel without gaining weight. The internal width between the hooks / sides is 28.5 mm. This gives more volume to the tires and improves efficiency, comfort and grip in turns.A wide rim also means that you can use finer, lighter tires while maintaining the comfort, softness and grip provided by a larger volume of air. Hookless design: the robustness of the rim is superior to that of a carbon rim with hooks. This technology has been used successfully on our rims since 2011.  The height of the rim edge for 2015 is reduced by 1mm to further limit any risk of contact with the ground. Lateral stiffness improved by 40% compared to the previous version.  Impact-resistant even on the most brittle ground: improved impact energy absorption of more than 50% compared to the previous model.  Anti-burp system: the heel of the tire is held in position whatever its pressure, no risk of "unseating". Tubeless or inner tube.

Data sheet

RIM MATERIAL
CARBON
RIM PROFILE
ASYMMETRIC
RIM HEIGHT (MM)
23
INSIDE WIDTH (MM)
28.5
TYPE OF BRAKING
DISC
MAX STRAIN (N)
1200.0
PRACTICE TYPE
AM
XC ENGAGED
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
14.0
TYPE OF TYRE
CLINCHER
TUBELESS
VALVE HEIGHT (MM)
44
TAPE WIDTH (MM)
30.0
MAX PRESSURE (BAR)
2,5B
ERD JANTE(S)
CJ 27,5" : 556
CJ 29" : 593
SYSTEM MAX WEIGHT (KG)
105
ETRTO (MM)
584.0
622.0
RIM OFFSET (MM)
3.0
MOUNTING WITH WASHERS
NO
POSITION
FRONT
REAR
TYRE SECTION RANGE
48MM 1,90" / 66MM 2,60"
WARRANTY
2 YEARS

Crash replacement

We offer a crash replacement programme for carbon wheels. In case of accidents or heavy falls, violent shocks can damage your rim and make it impossible to use. With our Crash Replacement offer we offer you a service that allows you to replace your rim under special conditions: You get a 50 percent discount on the price of the rim (UD SLS carbon) 40 percent (3k Carbon), as well as the parts and the disassembly/reassembly. This offer is valid (for life) for an unlimited period of time for DUKE carbon rims and is transferable in the event of sale of the wheels to a third party.
