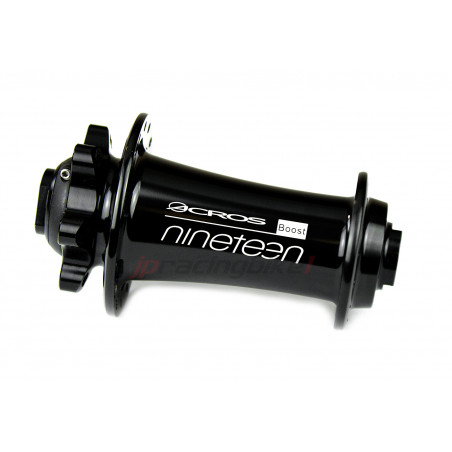

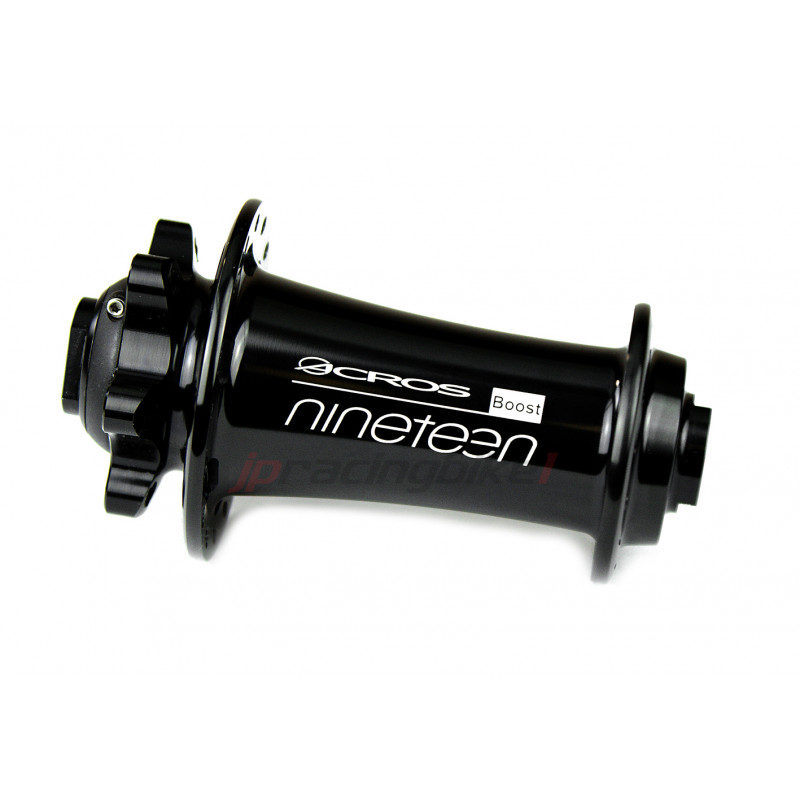

ACROS NINETEEN ED FRONT HUB

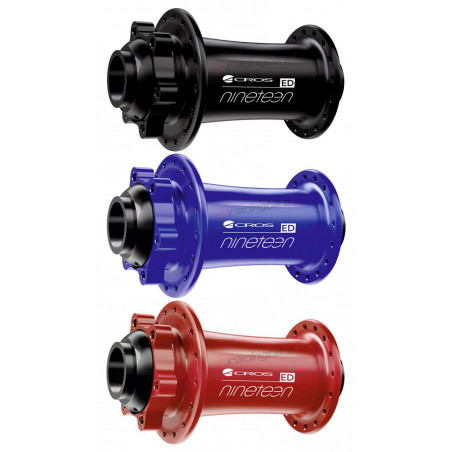

Variantes disponibles
137 g
€145.60
€101.92 Tax included

1 In stock

Expected shipping date: 05/12/2024

Quantity

favorite_border favorite

Acros ED HUB (enduro)

Acros hubs are 100% made in Germany. Unbeatable weight/price/quality ratio.  The hubs are easily removable for a simplified and more regular maintenance. They are delivered with an Acros grease pack and the necessary tool for disassembly.

In addition, it is possible to modify the pressure of the ratchets springs and thus to adjust the sound volume generated: 3 levels of adjustment. The hub body is machined from 6061 aluminum. The hubs are also equipped with an adjustment ring to adjust the play.

Data sheet

TYPE OF BRAKING
DISC
SPOKES ANCHORAGE
J-BEND
MAX STRAIN (N)
1300.0
PRACTICE TYPE
END
BEARING MATERIAL
STEEL
BEARING(S) SIZE
2X 1928
FREEWHEEL MATERIAL
ALU
POSITION
FRONT
SYSTEM TYPE RATCHET
SANS
LEFT DIAMETER (MM)
56.0
RIGHT DIAMETER (MM)
42.0
LEFT POSITION
23.5
28.0
RIGHT POSITION
38.1
40.0
HOLE DIAMETER (MM)
2.5
2.6
OFFSET LEFT HOLES
0.0
OFFSET RIGHT HOLES
0.0
STICKERS RANGE
ORIGIN
TYPE DE SYSTÈME ROUE LIBRE
SANS
WARRANTY
2 YEARS
