DUKE RIM ROAD RUNNER 23 DISC 24 holes

DUKE disc aluminum rim. Designed for versatile use on all types of roads.
Variantes disponibles
420 g
€129.00
€90.30 Tax included

In stock

Expected shipping date: 24/04/2025

Quantity

favorite_border favorite

DUKE ROAD RUNNER 23 discARTISANAL RIM

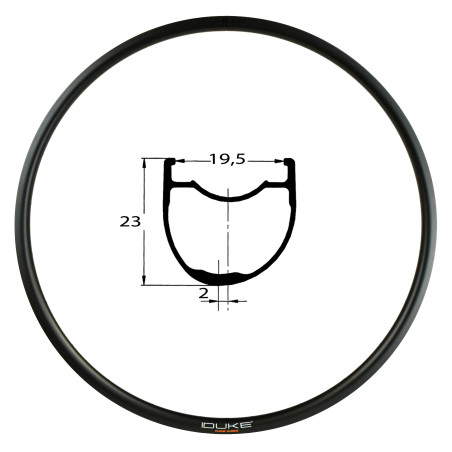

The DUKE Road runner 23 disc rim is designed, tested in France, DUKE is the exclusive owner of the manufacturing tools. The DUKE Road Rim Runner 23 disc Has a profile height of 23mm. ASYMMETRIC at the front & rear: As the front disc brack & the number of gears increases, The cassette-side flange of the hub is increasingly "pushed" towards the inside of the wheel have an asymetrical profil (2mm offset) Which makes it possible to increase the lateral stiffness of the wheel without gaining weight. The holes in the rim are off-centered, this makes it possible to close more the umbrella formed by the Spokes. Thus the spokes ensure a better maintenance of the rim and the lateral stiffness of the wheel is increased. Inner width 19,5mm. This gives more volume to the tires and improves efficiency, comfort and cornering grip. A wide rim also means that you can use finer, lighter tires while maintaining the comfort, softness and grip provided by a larger volume of air.

Data sheet

RIM DIAMETER
700C
HOLES NUMBER
24
RIM MATERIAL
ALU
RIM PROFILE
ASYMMETRICAL
RIM HEIGHT (MM)
23
SYSTEM MAX WEIGHT (KG)
110
INSIDE WIDTH (MM)
19.5
RIM FINISH
SATIN BLACK
TYPE OF BRAKING
DISC
MAX STRAIN (N)
1100.0
PRACTICE TYPE
CX
GRAVEL BIKE
MOUNTAIN
ROAD
TRIATHLON&CLM
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
14.0
REINFORCED RIM
NO
TYPE OF TYRE
TUBELESS OU CHAMBRE À AIR
VALVE HEIGHT (MM)
44
TAPE WIDTH (MM)
22.0
MAX PRESSURE (BAR)
6.5B WITH 28MM TYRE
ERD JANTE(S)
RR23 : 594
ETRTO (MM)
622.0
RIM OFFSET (MM)
2.0
MOUNTING WITH WASHERS
RECOMMENDED SUP 90KG (PILLAR 7048)
POSITION
FRONT
REAR
TYRE SECTION RANGE
25MM 1,00" / 46MM 1,80"
STICKERS RANGE
DUKE SERIE2 L
STICKER TYPE
L48
RIM BRAND
JANTE DUKE
WARRANTY
2 YEARS
Supplier info
3701517700489
