DUKE RIM BACCARA 48 Rb (RIM BRAKE)
The Baccara 48 are carbon rims suitable for road & competition use, Versatile on all types of roads, its internal width is 21mm for a height of 48mm.
Available for rim brakes or disc brakes.
SLR2 technology, weight reduced by 10%. This process also allows a better filtration of vibrations. The rim profile has been redesigned to improve its aerodynamics and stability in all wind conditions.

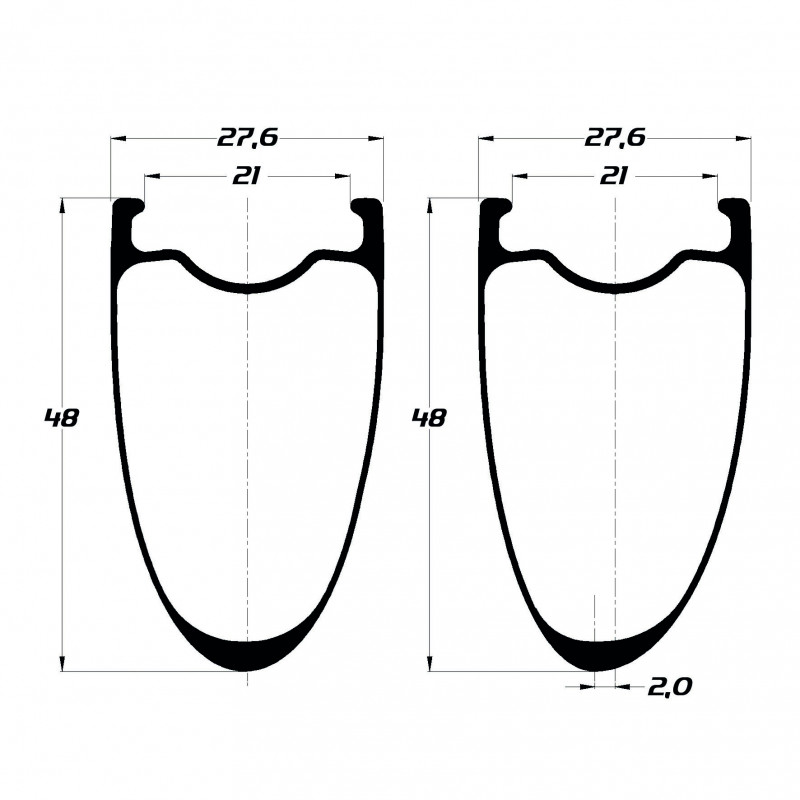

The outer width is increased to 27.6mm, has a new UV shape and reduces aerodynamic drag. The rim holes are off-centered (2mm offset), which allows to close more the spokes umbrella. This makes the rim more stable and increases the lateral stiffness of the wheel. The spoke tensions between the two layers are more balanced, which guarantees a better durability of the wheel. So more stiffness and more durability.
The wider 21mm hook width gives more volume to the tires and improves comfort and grip without losing performance.
Recommended tire widths are 25mm and 28mm, tubeless or tubetype. DUKE owns its manufacturing tools.
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRICAL
SYMMETRICAL - RIM HEIGHT (MM)
- 48
- SYSTEM MAX WEIGHT (KG)
- 125
- INSIDE WIDTH (MM)
- 21.0
- OUTER WIDTH (MM)
- 28.0
- TYPE OF BRAKING
- BRAKE PADS
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- MOUNTAIN
ROAD
TRACK
TRIATHLON&CLM - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- TYPE OF TYRE
- CLINCHER
TUBELESS - VALVE HEIGHT (MM)
- 63
- TAPE WIDTH (MM)
- 24.0
- MAX PRESSURE (BAR)
- 7.5B WITH 28MM TYRE
- ERD JANTE(S)
- 547.0
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 25MM 1,00" / 53MM 2,10"
- DELIVERED WITH PADS
- YES
- STICKER TYPE
- H36D
- RIM / STICKERS HEIGHT
- BACCARA 48 / 48MM
- AERO OPTIMIZED TYRE SIZE
- 25-26MM
- WARRANTY
- 3 YEARS
Brand
DUKE RACING WHEELS
