DUKE RIM BACCARA 36 Rb (RIM BRAKE)
The Baccara 36 are carbon rims suitable for road & competition use, Versatile on all types of roads, its internal width is 21mm for a height of 36mm
Available for rim brakes or disc brakes.
SLR2 technology, weight reduced by 10%. This process also allows a better filtration of vibrations. The rim profile has been redesigned to improve its aerodynamics and stability in all wind conditions.

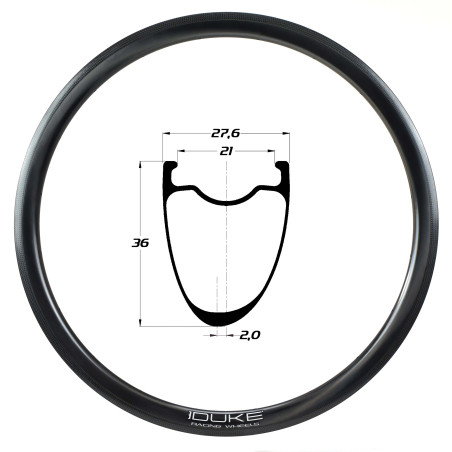

The outer width is increased to 27.6mm, has a new UV shape and reduces aerodynamic drag. The rim holes are off-centered (2mm offset), which allows to close more the spokes umbrella. This makes the rim more stable and increases the lateral stiffness of the wheel. The spoke tensions between the two layers are more balanced, which guarantees a better durability of the wheel. So more stiffness and more durability.
The wider 21mm hook width gives more volume to the tires and improves comfort and grip without losing performance.
Recommended tire widths are 25mm and 28mm, tubeless or tubetype. DUKE owns its manufacturing tools.
Technology
-

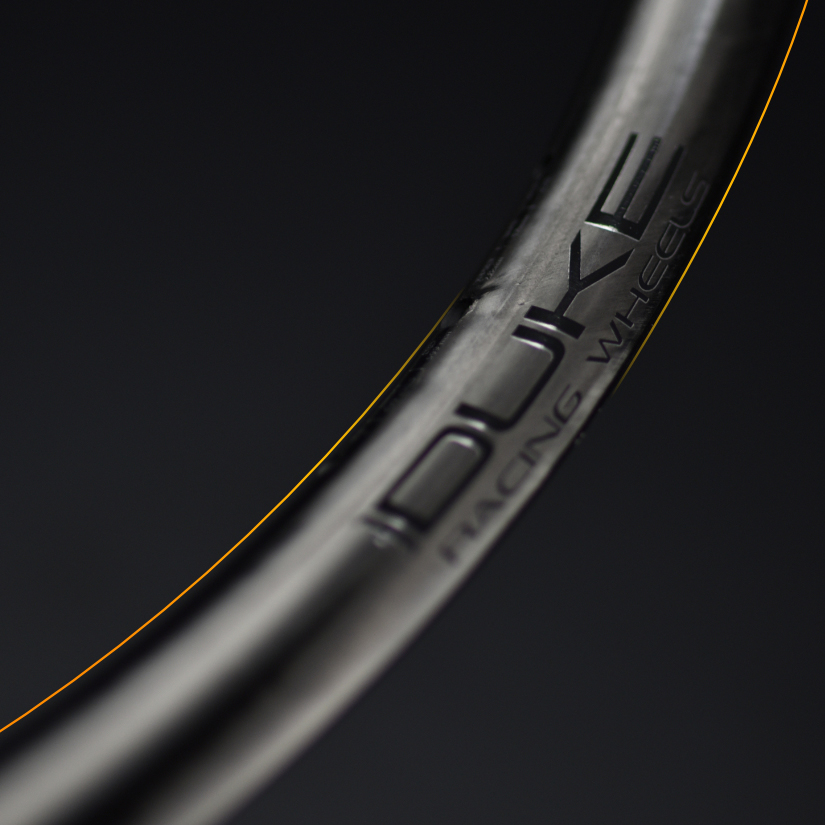

VFP (Varnish Free Process)
Since 2021, our carbon rims benefit from a unique finish: incomparable brilliance and reflections thanks to a new process called VFP without varnish. This, also and above all, makes them more environmentally friendly by drastically reducing VOC and carbon dust emissions compared with a traditional rim. Without varnish, the rim is also harder on the surface, and more resistant to scratches.
-
SLR2 (Super light road series 2)
The SLR2 series for Road and Gravel is 15% lighter and more resistant than the sls version thanks to a completely new lay-up and a new resin which not only allow the same lateral rigidity to be maintained but also and above all to considerably improve the comfort, vibration filtering and rim performance. The SLR2 is manufactured in a sealed atmosphere and does not require any retouching when it comes out of the mould. No rework or varnish, the VFP gloss finish is ecological and exceptional!
-
Tubeless
Our Tubeless compatible rims (UST, Tubeless Ready and Notubes), only require some Duke rim tape and a Tubeless-ready valve. They can also be used in a classic clincher set up (tyre & inner tube).
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRICAL
SYMMETRICAL - RIM HEIGHT (MM)
- 36
- INSIDE WIDTH (MM)
- 21.0
- OUTER WIDTH (MM)
- 28.0
- TYPE OF BRAKING
- BRAKE PADS
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- MOUNTAIN
ROAD
TRACK
TRIATHLON&CLM - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- TYPE OF TYRE
- CLINCHER
TUBELESS - VALVE HEIGHT (MM)
- 51
- TAPE WIDTH (MM)
- 24.0
- MAX PRESSURE (BAR)
- 7.5B WITH 28MM TYRE
- ERD JANTE(S)
- 570.5
- SYSTEM MAX WEIGHT (KG)
- 125
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 25MM 1,00" / 53MM 2,10"
- DELIVERED WITH PADS
- YES
- STICKERS RANGE
- DUKE SERIE2 H
- STICKER TYPE
- H36P
- RIM / STICKERS HEIGHT
- BACCARA 36 / 36MM
- AERO OPTIMIZED TYRE SIZE
- 25-26MM
- WARRANTY
- 3 YEARS
