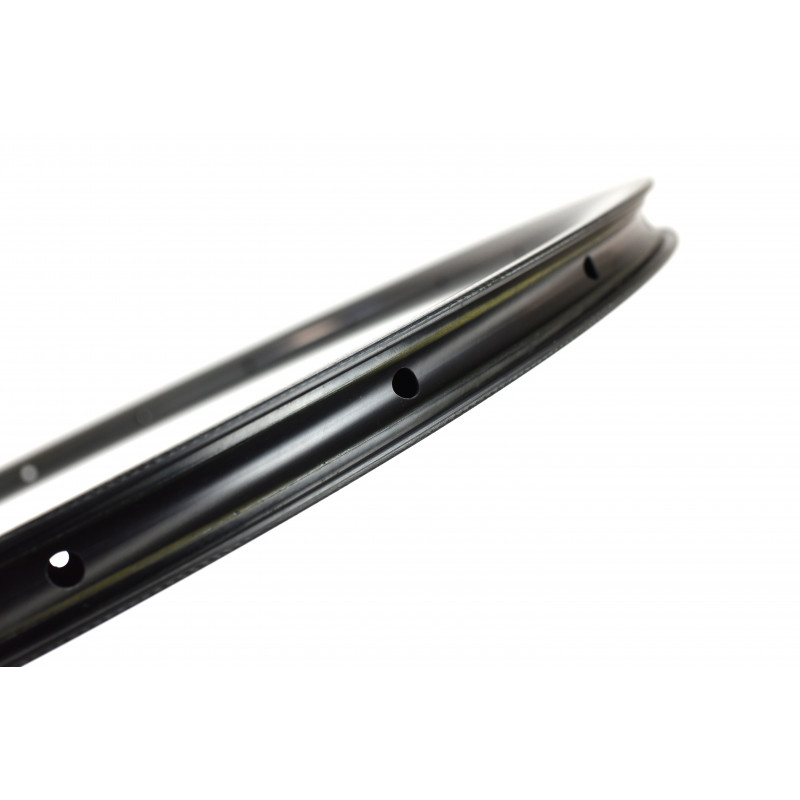

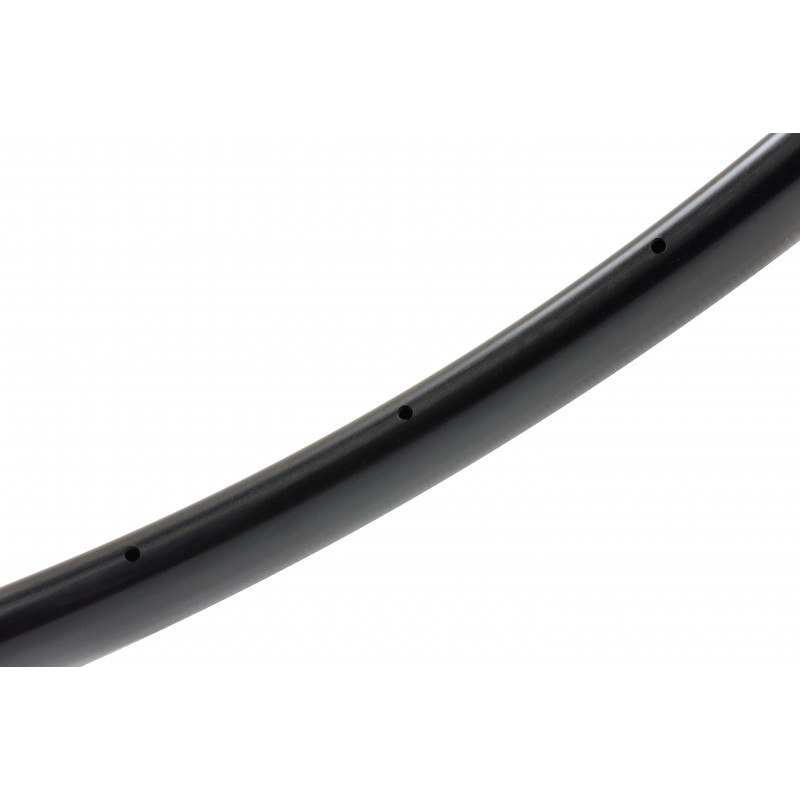

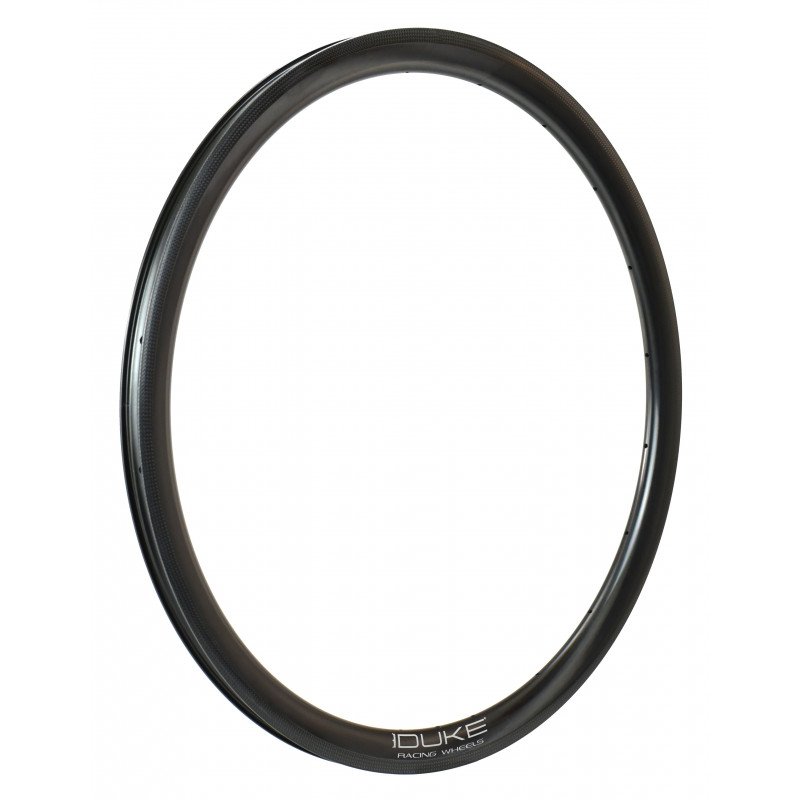

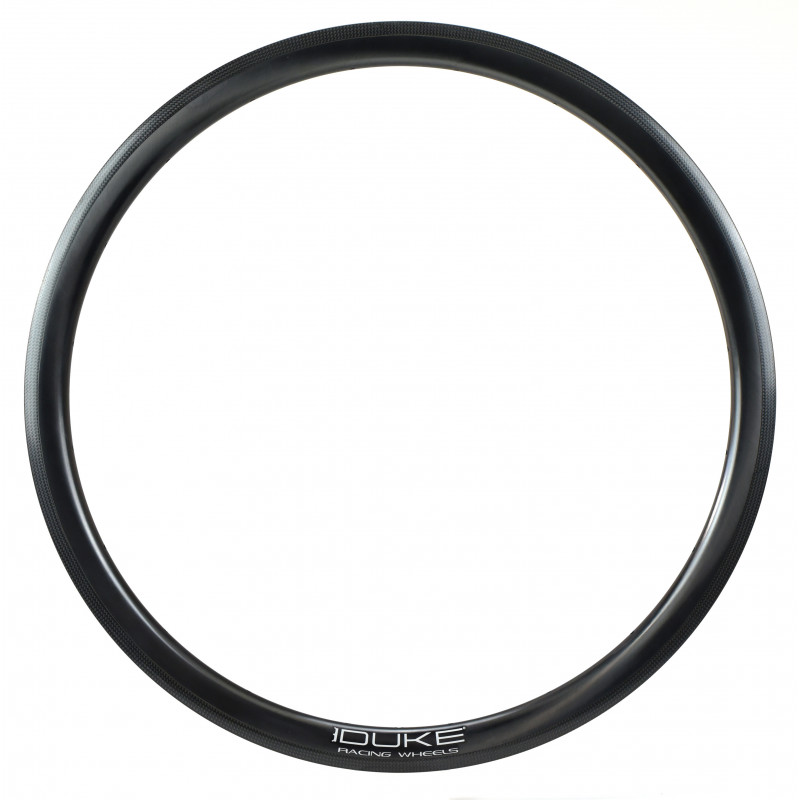

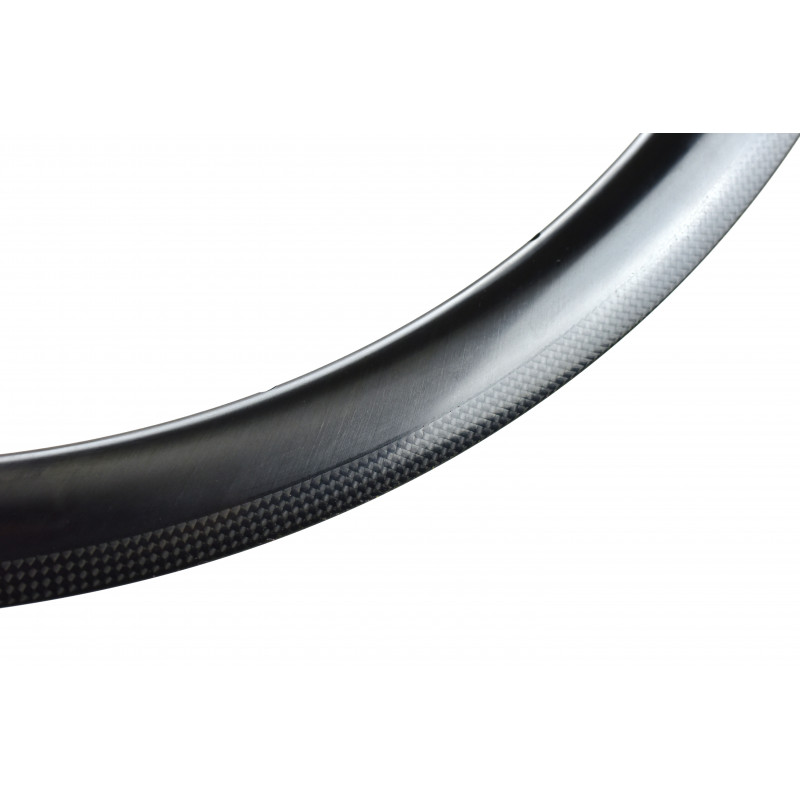

DUKE RIM BACCARA 36 Rb (RIM BRAKE)

The Baccara 36 are carbon rims suitable for road & competition use, Versatile on all types of roads, its internal width is 21mm for a height of 36mm

Variantes disponibles
410 g
€415.00 Tax included
3 In stock

Expected shipping date: 15/11/2024

Quantity

favorite_border favorite

Available for rim brakes or disc brakes.

SLR2 technology, weight reduced by 10%. This process also allows a better filtration of vibrations. The rim profile has been redesigned to improve its aerodynamics and stability in all wind conditions.

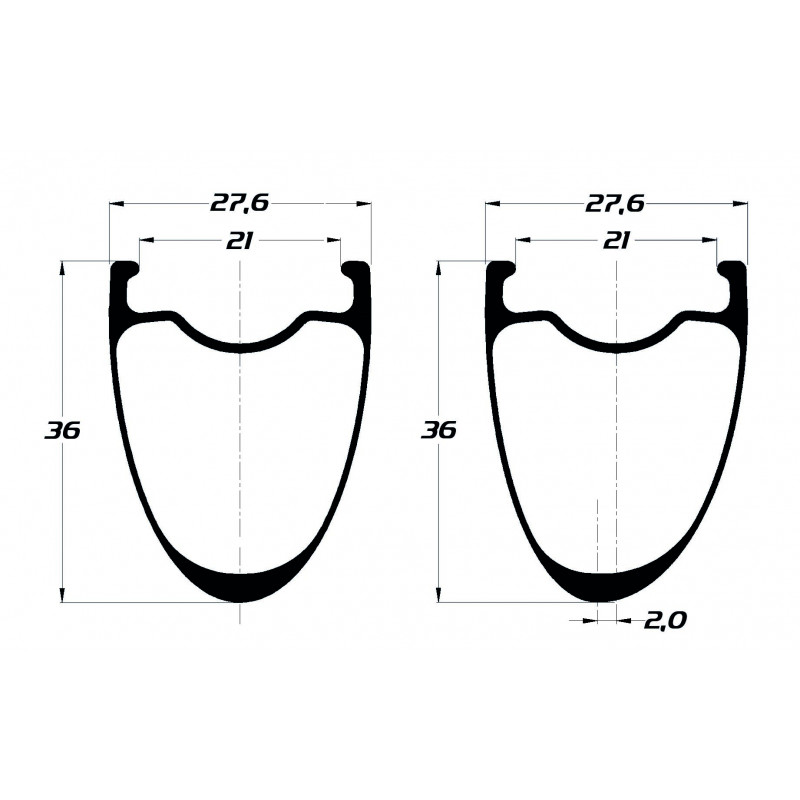

The outer width is increased to 27.6mm, has a new UV shape and reduces aerodynamic drag. The rim holes are off-centered (2mm offset), which allows to close more the spokes umbrella. This makes the rim more stable and increases the lateral stiffness of the wheel. The spoke tensions between the two layers are more balanced, which guarantees a better durability of the wheel. So more stiffness and more durability.

The wider 21mm hook width gives more volume to the tires and improves comfort and grip without losing performance.

Recommended tire widths are 25mm and 28mm, tubeless or tubetype. DUKE owns its manufacturing tools.

Technology

  • VFP (Varnish Free Process)

    Since 2021, our carbon rims benefit from a unique finish: incomparable brilliance and reflections thanks to a new process called VFP without varnish. This, also and above all, makes them more environmentally friendly by drastically reducing VOC and carbon dust emissions compared with a traditional rim. Without varnish, the rim is also harder on the surface, and more resistant to scratches.

  • SLR2 (Super light road series 2)

    The SLR2 series for Road and Gravel is 15% lighter and more resistant than the sls version thanks to a completely new lay-up and a new resin which not only allow the same lateral rigidity to be maintained but also and above all to considerably improve the comfort, vibration filtering and rim performance. The SLR2 is manufactured in a sealed atmosphere and does not require any retouching when it comes out of the mould. No rework or varnish, the VFP gloss finish is ecological and exceptional!

  • Tubeless

    Our Tubeless compatible rims (UST, Tubeless Ready and Notubes), only require some Duke rim tape and a Tubeless-ready valve. They can also be used in a classic clincher set up (tyre & inner tube).

Data sheet

RIM MATERIAL
CARBON
RIM PROFILE
ASYMMETRICAL
SYMMETRICAL
RIM HEIGHT (MM)
36
INSIDE WIDTH (MM)
21.0
OUTER WIDTH (MM)
28.0
TYPE OF BRAKING
BRAKE PADS
MAX STRAIN (N)
1200.0
PRACTICE TYPE
MOUNTAIN
ROAD
TRACK
TRIATHLON&CLM
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
14.0
TYPE OF TYRE
CLINCHER
TUBELESS
VALVE HEIGHT (MM)
51
TAPE WIDTH (MM)
24.0
MAX PRESSURE (BAR)
7.5B WITH 28MM TYRE
ERD JANTE(S)
570.5
SYSTEM MAX WEIGHT (KG)
125
ETRTO (MM)
622.0
RIM OFFSET (MM)
2.0
MOUNTING WITH WASHERS
NO
POSITION
FRONT
REAR
TYRE SECTION RANGE
25MM 1,00" / 53MM 2,10"
DELIVERED WITH PADS
YES
STICKERS RANGE
DUKE SERIE2 H
STICKER TYPE
H36P
RIM / STICKERS HEIGHT
BACCARA 36 / 36MM
AERO OPTIMIZED TYRE SIZE
25-26MM
WARRANTY
3 YEARS
